ESW 1202-+++-XXX / ESW 1203-+++-XXX
ESW 1202-+++-XXX / ESW 1203-+++-XXX

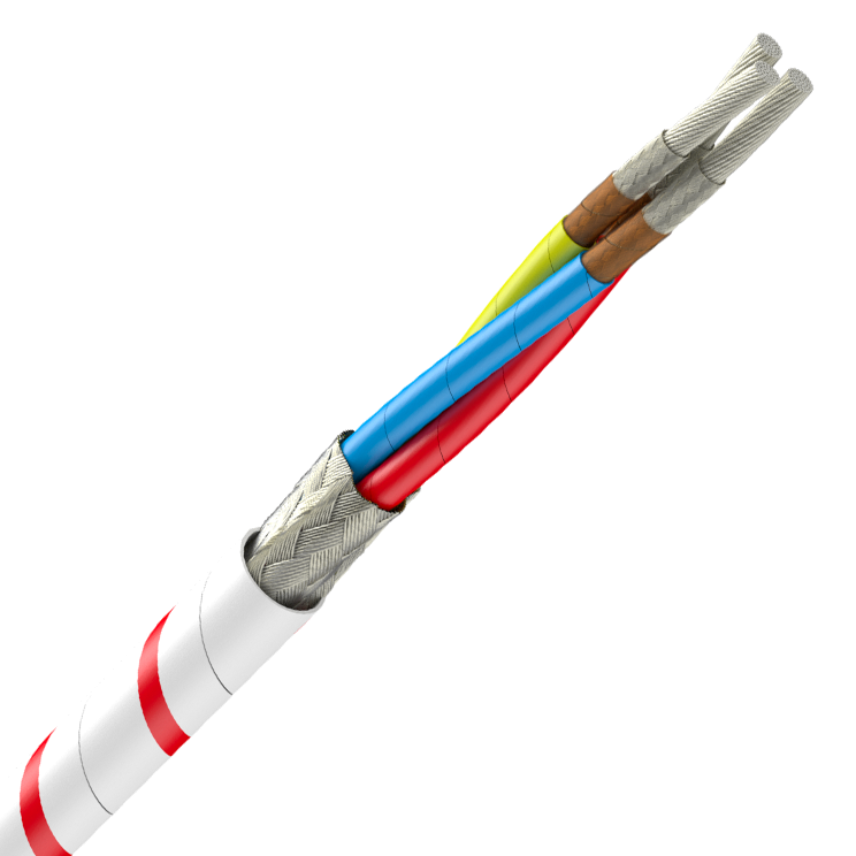

Fire Resistant Cable, Single and Multi-cores Screened and Jacketed
Aero-engine services applications.
Beschreibung
Beschreibung
Normen
-
NationalESW 1203; ESW 1202
CORE
Stranded conductor
Nickel clad copper alloy (ESW 1202)
Nickel clad copper (ESW 1203)
004 : 19 x 0.15 mm
006 : 19 x 0.20 mm
010 : 19 x 0.25 mm
012 : 19 x 0.30 mm
INSULATION
Fire resistant insulation
Polyimide Tape
PTFE Tape
SCREEN
Nickel plated copper braid
JACKET
PTFE tape(s)
Eigenschaften
Eigenschaften
Elektrische Eigenschaften
Elektrische Eigenschaften
Anwendungsmerkmale
Anwendungsmerkmale
Ressourcen
Ressourcen
Verkauf & Lieferung Informationen
Core identification :
Single core : White
Two cores : Red - Blue
Three cores : Red - Blue - Yellow
Four cores: Red - Blue - Yellow - Green
Jacket identification :
White with narrow red stripe
Marking text :
ESW1202-+++-xxx-FX-FF-**
ESW1203-+++-xxx-FX-FF-**
+++ = Form code
xxx = Size code
** = Year of production (ie. 14 = 2014)
