Study 132807

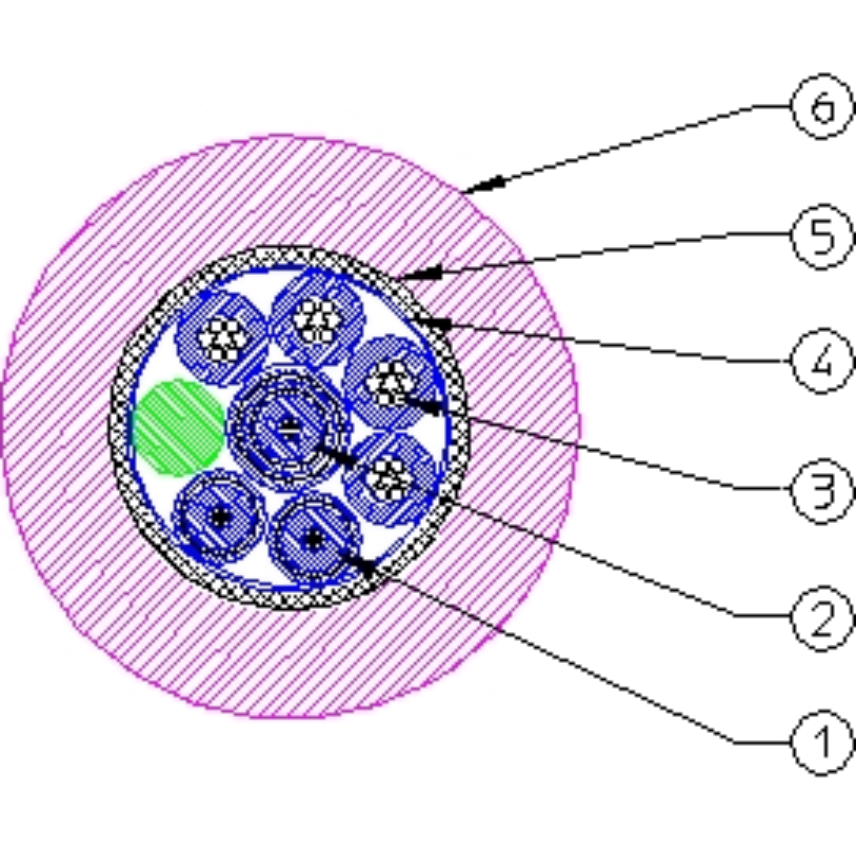

1- CORE (A)

AWG 32 stranded Silver plated copper alloy conductor.
FEP insulation.
Diameter : 0.65 +/- 0.02 mm.
AWG 44 Silver plated copper spiral shield.
Nominal diameter : 0.75 mm.
FEP jacket
Diameter : 0.91 +/- 0.03 mm

2- CORE (B)

32 AWG stranded Silver plated copper alloy conductor.
FEP insulation.
Diameter : 0.65 +/- 0.02 mm.
AWG 44 Silver plated copper spiral shield.
Nominal diameter : 0.75 mm
FEP jacket.
Nominal diameter : 0.91 +/- 0.03 mm.
AWG 44 Silver plated copper spiral shield.
Nominal diameter : 1.01 mm.
FEP jacket.
Diameter : 1.20 +/- 0.10 mm.

3- CORE (C)

AWG 26 stranded Silver plated copper conductor.
FEP insulation.
Diameter : 0.91 +/- 0.05 mm

Assembly

1 Core (B) + 1 Kevlar member
Around 2 Cores (A) + 1 filler + 4 Cores (C) twisted.
Nominal diameter : 3.00 mm

4- PTFE Tape
Nominal diameter : 3.05 mm

5- SHIELD
AWG 40 Silver plated copper braid.
85% coverage.
Nominal diameter : 3.50 mm

6- JACKET
Medical PVC
Diameter : 6.80 +/- 0.15 mm

Main Characteristics
Minimum bending radius : 5 x Overall diameter.
