Study 133606
Study 133606
Very flexible cable with an extremely good mechanical behaviour.
Withstands miscellaneous sterilisation processes.
- Country ref. : Etude 133606
Description
Description
Standards
-
ProductNexans specification

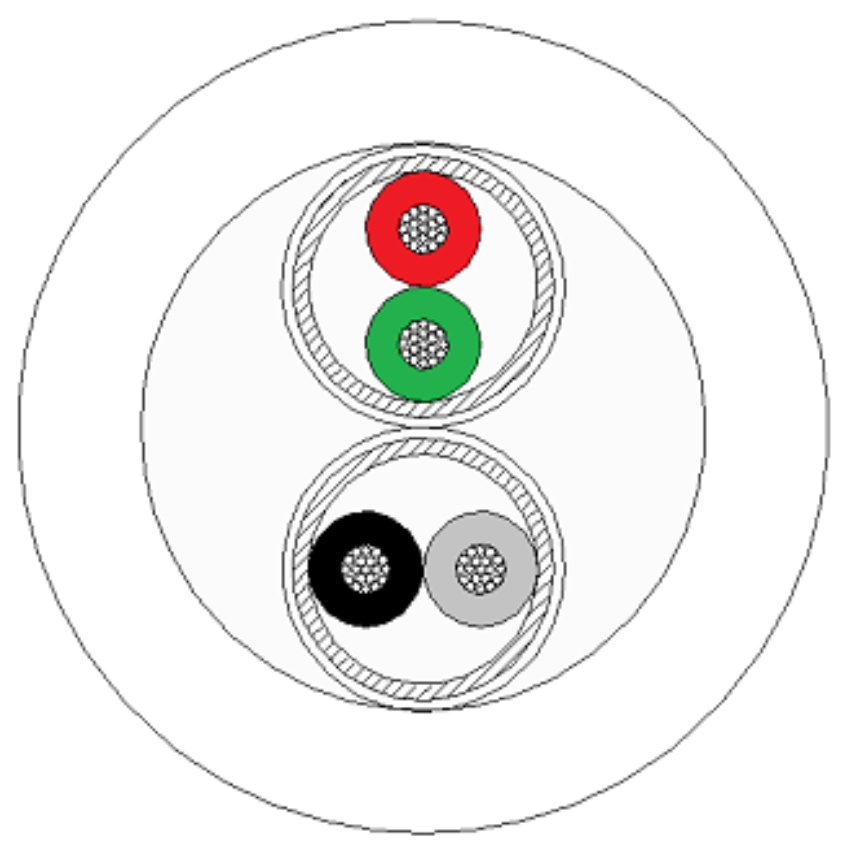

1- CORE (A)
Core (Z)
AWG 32 stranded Silver plated copper conductor.
FEP insulation.
Diameter : 0.58 +/- 0.03 mm
Assembly 2 Cores (Z)
Nominal diameter : 1.16 mm
AWG40 Tin plated copper spiral shield.
90% min. coverage
PTFE tape
Nominal diameter : 1.43 mm
Assembly
2 Cores (A) twisted.
Nominal diameter : 2.86 mm
2- JACKET
Medical PVC
Nom. Diameter : 4.00 mm
Max. Diameter : 4.20 mm
Main Characteristics
Minimum bending radius : 5 x Overall diameter.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Construction type
Shielded and sheathed
Conductor shape
Multi stranded
Conductor material
Silver coated copper
Insulation
FEP
Dimensional characteristics
Dimensional characteristics
Approximate weight
17 g/m
Outer Diameter
4.1 mm
Electrical characteristics
Electrical characteristics
Operating voltage
250 V
Mechanical characteristics
Mechanical characteristics
Cable flexibility
Very flexible
Usage characteristics
Usage characteristics
Maximum operating temperature
60 °C
Minimum operating temperature
-20 °C
RoHS compliant
Yes
