ENERGYFLEX PV H1Z2Z2-K (1.5kV DC)
ENERGYFLEX PV H1Z2Z2-K (1.5kV DC)
ENERGYFLEX

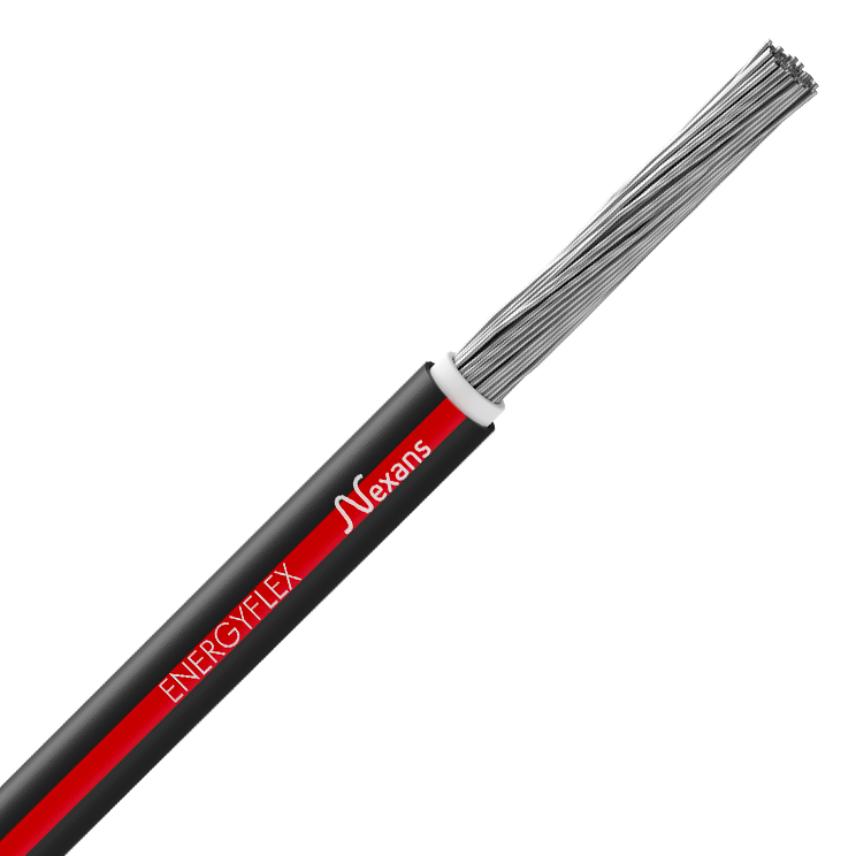

Energyflex® cables are designed to comply with the international standards of the solar plants. They are dedicated to the photovoltaic system direct current (D.C.) side with a nominal D.C. voltage of 1.5 kV and a maximum D.C. voltage of 1.8 kV.
These cables are suitable for permanent outdoor long-term use, under variable and harsh climate conditions.
PV H1Z2Z2-K Energyflex 1x4mm² NR
Product ref. 10189494
- Packaging: Drum (m)
- Sheath colour: Black (blue or red stripe on request)
- Conductor cross-section: 4 mm²
ENERGYFLEX® 1x4mm² D500
Product ref. 10191003
- Packaging: Drum (500m)
- Sheath colour: Black (blue or red stripe on request)
- Conductor cross-section: 4 mm²
ENERGYFLEX EN50618 1x4 ONE Stripe RED D500
Product ref. 10206312
- Packaging: Drum (m)
- Sheath colour: Black with red stripe
- Conductor cross-section: 4 mm²
PV H1Z2Z2-K Energyflex 1x6mm² NR
Product ref. 10189495
- Packaging: Drum (m)
- Sheath colour: Black (blue or red stripe on request)
- Conductor cross-section: 6 mm²
ENERGYFLEX® 1x6mm² D500
Product ref. 10191094
- Packaging: Drum (500m)
- Sheath colour: Black (blue or red stripe on request)
- Conductor cross-section: 6 mm²
ENERGYFLEX 1X6 EN50618 One Stripe Red D500
Product ref. 10206375
- Packaging: Drum (m)
- Sheath colour: Black with red stripe
- Conductor cross-section: 6 mm²
PV H1Z2Z2-K Energyflex 1x10mm² NR
Product ref. 10191044
- Packaging: Drum (m)
- Sheath colour: Black (blue or red stripe on request)
- Conductor cross-section: 10 mm²
ENERGYFLEX® 1x10mm² D500
Product ref. 10191000
- Packaging: Drum (500m)
- Sheath colour: Black (blue or red stripe on request)
- Conductor cross-section: 10 mm²
ENERGYFLEX® 1x16mm² D500
Product ref. 10185635
- Packaging: Drum (500m)
- Sheath colour: Black (blue or red stripe on request)
- Conductor cross-section: 16 mm²
Description
Description
Standards
-
ProductEN 50618; IEC 62930
DESIGN
Single core fire resistance solar cable with low smoke, halogen free, crosslinked insulation and sheath.
1. Conductor
Stranded tinned copper wires class 5 acc. IEC 60228
2. Insulation
Cross-linked halogen-free rubber
Colour: white
3. Sheath
Cross-linked halogen-free fire retardant rubber
Colour: black
Example of marking: ENERGYFLEX® USE < HAR > H1Z2Z2-K 62930 IEC 131 1 x S mm² 1.5/1.5 (1,8) kV DC lynxeo 269 MADE IN FRANCE Dca
FEATURES

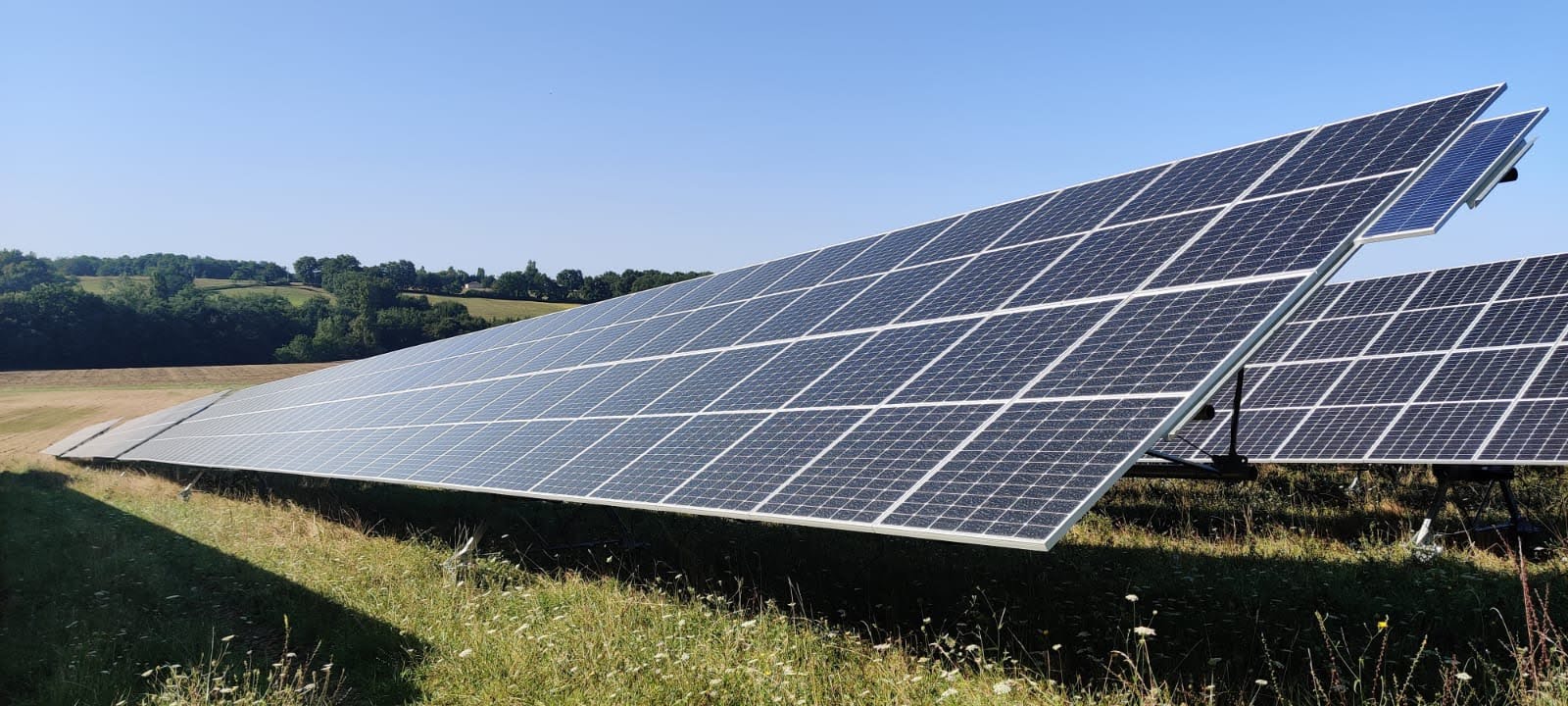

These state-of-art 1.5kV D.C. cross-linked Energyflex® cables offer exceptional performances, easy installation and long-term reliability for solar plant. They link photovoltaic panels for Utility-Scale solar plants or rooftops, and also connect them to the array box (if existing), or potentially to the inverter. They are designed and tested to operate at a normal maximum conductor temperature of 90°C and for 20,000 hours up to 120°C. Therefore, the expected period use is 30 to 40 years under normal usage conditions (lifetime acc. to Arrhenius-Diagram).
- Single core solar cable with low smoke, halogen free, cross-linked insulation and sheath.
- String Harness according to IEC 62548 Photovoltaic (PV) arrays - Design requirements.
Recommended Use
- Renewable Energies; Solar Plants.
- Intended for permanent use outdoor and indoor.
- Installation can be fixed or free movable / free hanging, and also in cable trays and conduits.
- They are suitable for submerged installations with a maximum cumulated immersion period of 6 months / year.
PV
