SERVO CABLES WITH INNER JACKET ACC. TO BOSCH REXROTH® STANDARD

Servo cables with 2 control pairs for extremely dynamic applications MOTIONLINE® PREMIUM

Lire plus

Fiche technique PDF

Contactez-nous

Produits

Description

Normes

Produit

UL and CSA approval

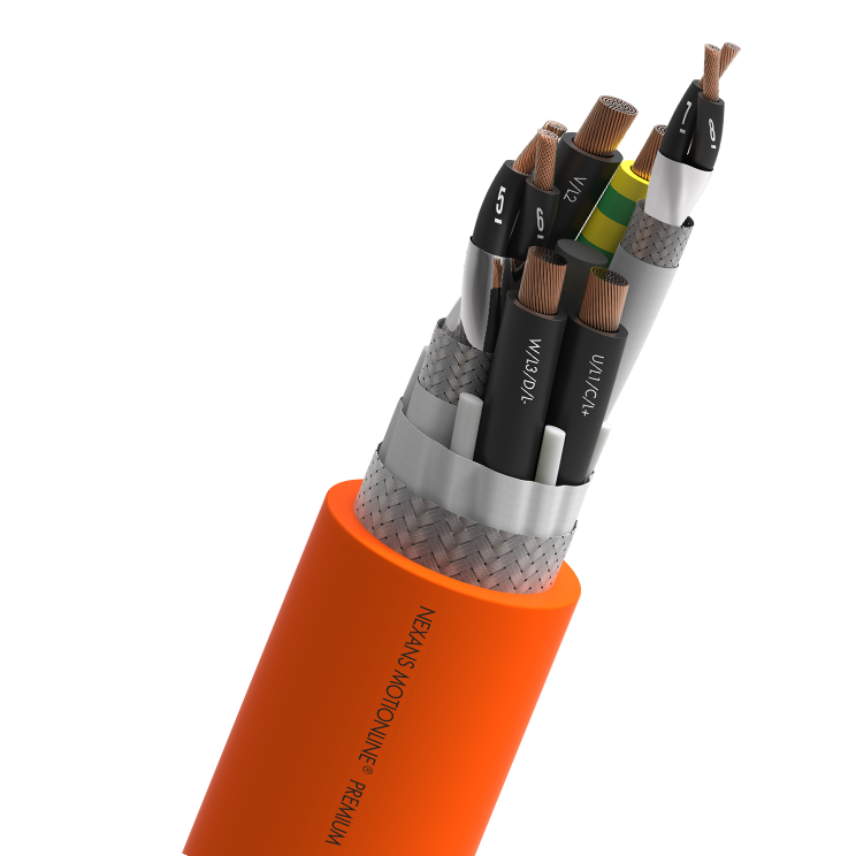

Servo cables with 2 control pairs for extremely dynamic applications; PUR jacket, TPE inner jacket, screened, resistant to oils and coolants, notch resistant, flame retardant, resistant
to hydrolysis and microbes, PVC- and halogen-free.

Caractéristiques

Caractéristiques de construction

Nature de l'âme

Bending-resistant conductor with bare copper wires

Isolation

TPM with very low capacitance

Assemblage

power cores and control pairs stranded with filler

Couleur d'isolation

Power: 3 black cores with marking, 1 core green-yellow Power: U/L1/C/L+ V/L2 W/L3/D/L- Ye/Gn Control: black numbered 5-6; 7-8

Gaine interne

TPE compound, optimized for drag chain use

Ecran

Tinned copper braid, coverage ≥ 80%

Ecran individuel

Aluminium coated plastic foil and tinned copper braid, coverage >=80%

Gaine extérieure

PUR

Couleur de la gaine

Orange RAL 2003

Sans halogène

Oui

Caractéristiques électriques

Tension Uo/U

0.6/1 kV

Tension d'essai

4000 V

Caractéristiques mécaniques

Bending cycles

5 Mio.

Speed

300 m/min

Maximum acceleration

50 m/s²

Caractéristiques d'utilisation

Application

Dynamic

Rayon de courbure minimum en utilisation dynamique

7,5 (xD)

Température ambiante d'utilisation, plage

-30 ... 80 °C

Température de stockage, plage

-50 ... 80 °C

Non propagateur de la flamme

IEC 60332-1-2; UL 1581 FT1

Résistance aux huiles

DIN EN 50363-10-2 & DIN EN 60811-404

SERVO CABLES WITH INNER JACKET ACC. TO BOSCH REXROTH® STANDARD

Produits

SERVO CABLES WITH INNER JACKET ACC. TO BOSCH REXROTH® (4G1,5+2x(2x0,75)C)C STANDARD

SERVO CABLES WITH INNER JACKET ACC. TO BOSCH REXROTH® (4G2,5+2x(2x0,75)C)C STANDARD

SERVO CABLES WITH INNER JACKET ACC. TO BOSCH REXROTH® (4G4,0+2x(2x1,0)C)C STANDARD

SERVO CABLES WITH INNER JACKET ACC. TO BOSCH REXROTH® (4G6,0+2x(2x1,0)C)C STANDARD
