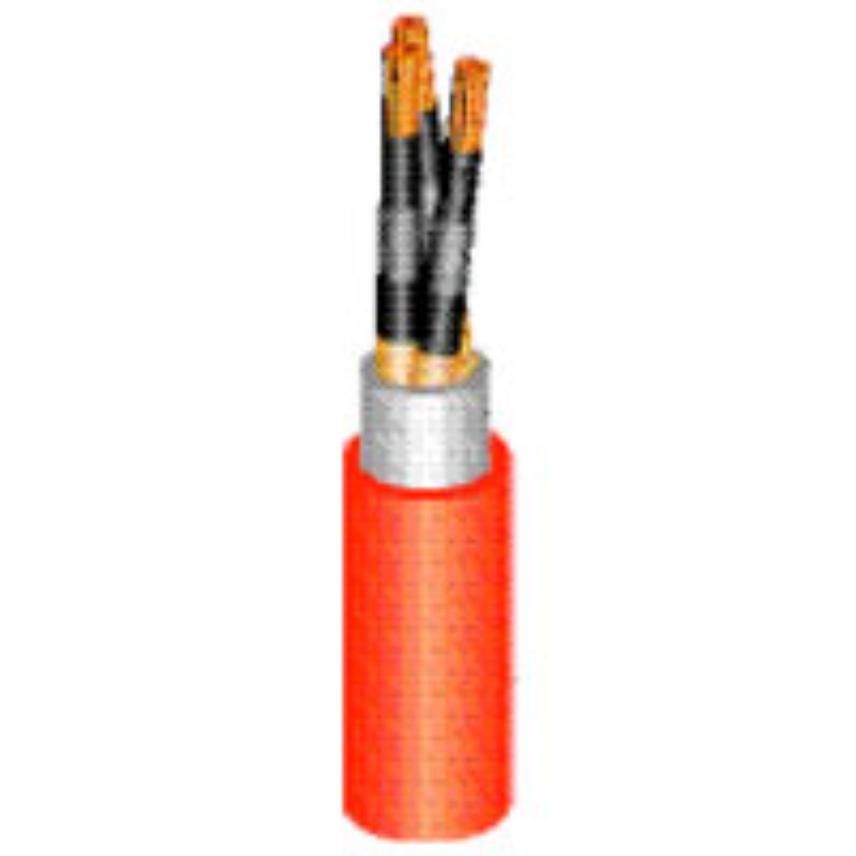

IEC 60502-2 Non armé 1 x 150

Applications

These power cables are used for electricity supply in medium voltage installation system where chemicals may be present.

Design

Conductor:

Stranded bare copper (class 2);

Semi-conductor

Insulation:

Cross-linked polyethylene (XLPE)

Semi-conductor

Screen:

Copper tape

Bedding (Optional):

An inner sheath acting as a filler with practically zero thickness

Outer sheath:

Polyvinyl chloride (PVC). Colour: red. Other colour on request.

Core identification

1 core: natural
3 x: black – green – brown (by tape under copper screen)


Marking

NEXANS 279 XLPE/PVC VOLTAGE Nber of cores and cross section Cu/Alu IEC 60332-3-22(A) MM YYYY manufacturing number + meter marking
