Study 133478
Study 133478
USB 2.0 high speed
Very flexible cable with an extremely good mechanical behaviour.
Withstands miscellaneous sterilisation process.
- Country ref. : Etude 133478
Description
Description
Standards
-
ProductNexans specification

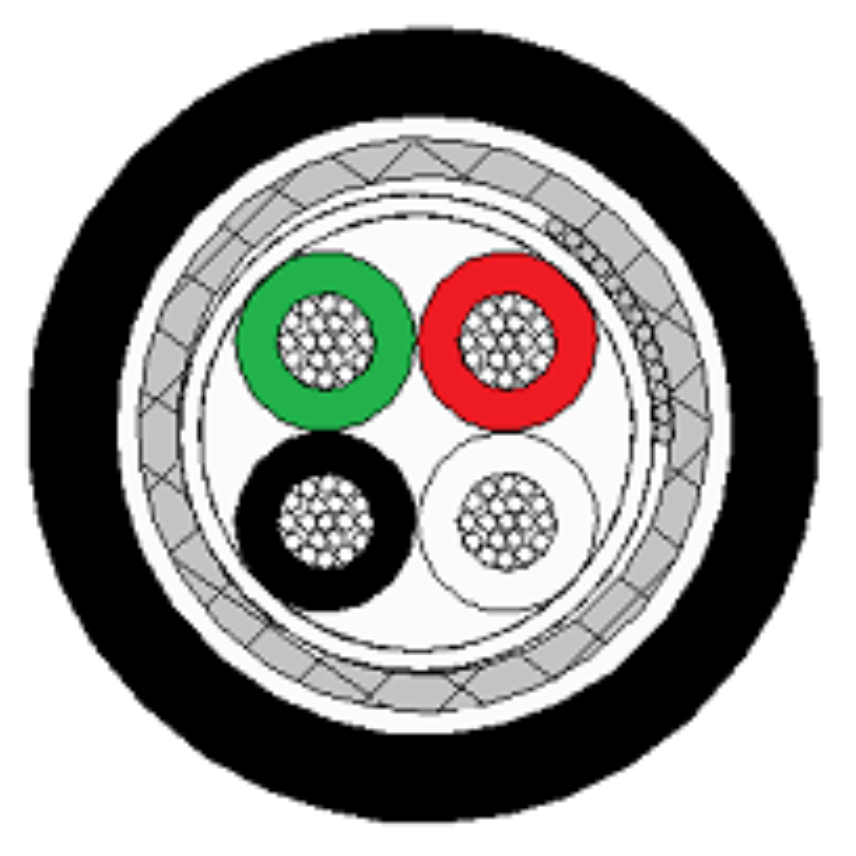

CORE A
AWG 28 stranded silver plated copper alloy conductor.
MFA insulation.
Diameter : 0.75 +/- 0.05 mm.
Assembly
4 Cores (A) twisted.
PTFE tape.
CORE B
14 x 0.08 mm Silver plated copper alloy.
SHIELD
AWG 40 Silver plated copper alloy braid
95% min. coverage.
PTFE tape.
Medical Polyurethane Jacket
Diameter : 3.30 +/- 0.10 mm.
Mechanical performances
Minimum static bending radius : 5 x Overall diameter.
Characteristics
Characteristics
结构特性
结构特性
导体材料
镀银铜线
导体形状
多芯绞和
结构类型
屏蔽和护套
绝缘
氟聚合体
尺寸特性
尺寸特性
线径
0.75 mm
外径
3.3 mm
Maximum outer diameter
3.4 mm
近似重量
19 g/m
电气特性
电气特性
工作电压
24 V
机械特性
机械特性
电缆柔软度
超柔软
使用特性
使用特性
最高工作温度
85 °C
最低工作温度
-30 °C
Mechanical Resistance
良好的机械防护
