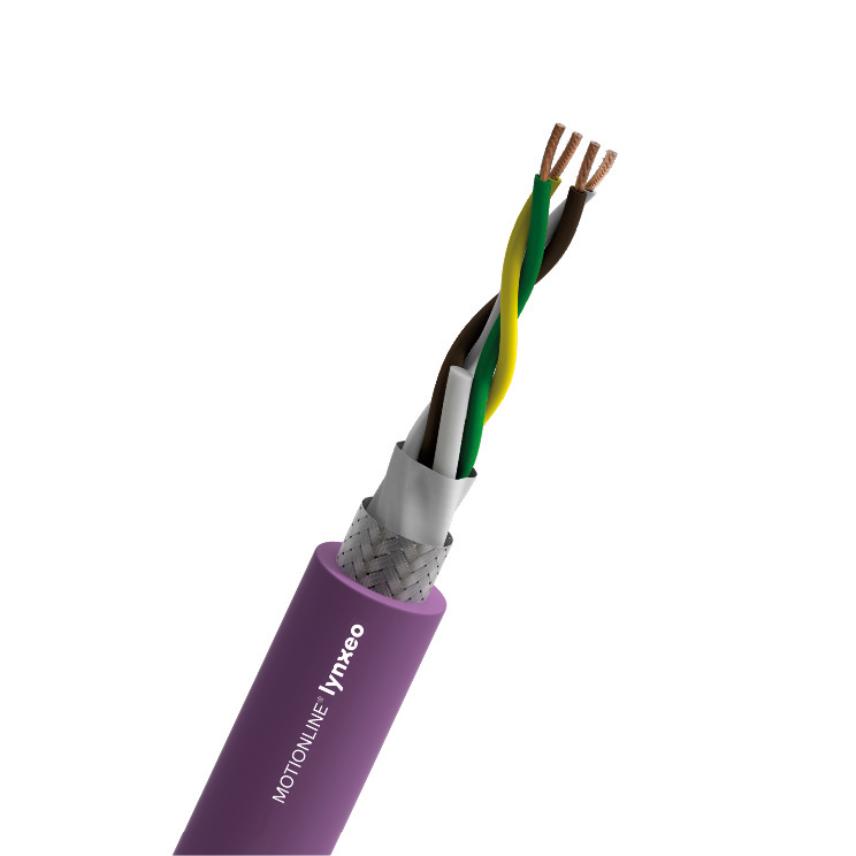

CAN BUS PVC CABLES - fixed installation
CAN BUS PVC CABLES - fixed installation
CAN-BUS cables with PVC jacket for fixed installation, shielded, flame retardant
更多内容CAN BUS PVC (1x2x0.22)C
Nexans ref. 13-DRX24P01R - Country ref. 13-DRX24P01R
- 包装: Drum (1000m)
- 结构类型: (1x2x0.22)C
- 标称外径: 5.7 mm
- 铜含量: 17 kg/km
- 近似重量: 55 kg/km
CAN BUS PVC (2x2x0.22)C
Nexans ref. 13-DRX24P02R - Country ref. 13-DRX24P02R
- 包装: Drum (1000m)
- 结构类型: (2x2x0.22)C
- 标称外径: 7.6 mm
- 铜含量: 35 kg/km
- 近似重量: 69 kg/km
Description
Description
Standards
-
ProductUL and CSA approval
Applications
Interconnecting fieldbus cable for static application
BUS cables to connect Controller Area Network components
Normative references
CAN standard and customers requirements
UL recognized / CSA approval
Characteristics
Characteristics
结构特性
结构特性
导体材料
裸铜线
绝缘
泡沫皮
绝缘色
DIN 47100
Taping
Soft tape
屏蔽
≥85% tinned copper braid coverage
外护套
聚氯乙烯
护套颜色
Violet RAL 4001
电气特性
电气特性
Rated Voltage Uo/U
300 V
特性阻抗
120 Ohm
测试电压
1500 V
传输特性
传输特性
1Mhz的衰减
1.3 dB/100m
5Mhz的衰减
3.1 dB/100m
10Mhz的衰减
4.3 dB/100m
20Mhz的衰减
6.4 dB/100m
使用特性
使用特性
应用类型
Static
操作温度范围
-20 ... 80 °C
存储温度范围
-30 ... 80 °C
阻燃 - 火焰
IEC/EN 60332-1-2; FT1; UL 1581 FT1
