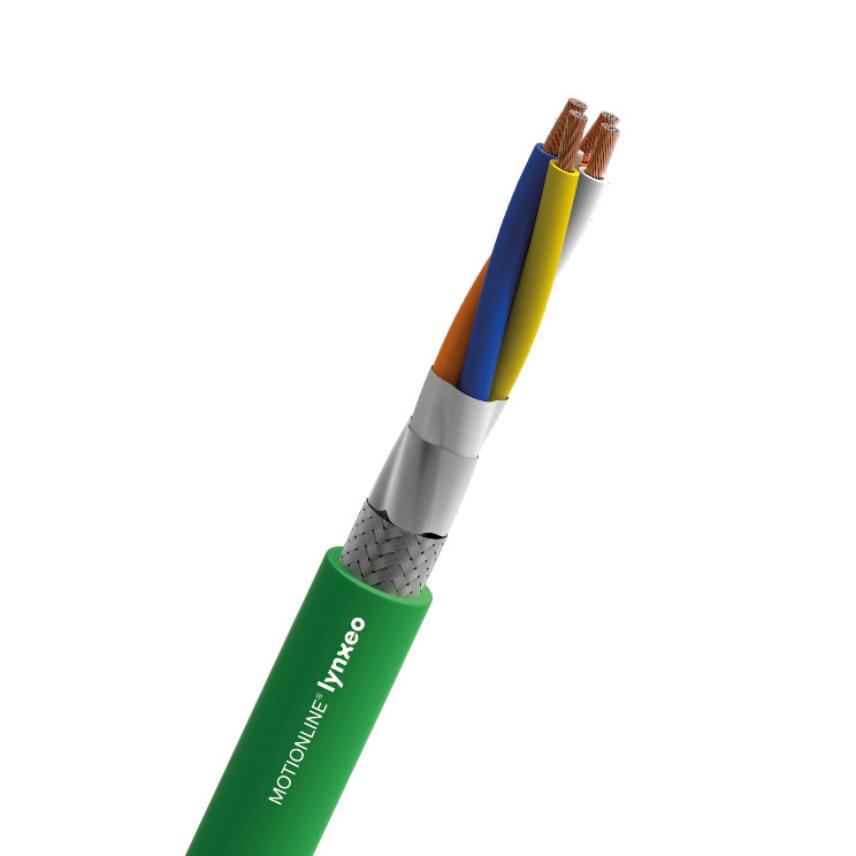

Profinet cable with pur jacket for drag chain applications, shielded, oil resistant MOTIONLINE® ADVANCED
更多内容PROFINET TYPE C 1x(4xAWG22/7)C CMX
Product ref. 10556657 - Country ref. 13-DRX22Q01P-V3
- 包装: Cut to length (米)
Description
Description
Standards
-
ProductUL and CSA approval
Profinet cable with pur jacket for drag chain applications, shielded, oil resistant, UL CMX approval
Application
Profinet cables are designed for Data networks in industrial environments.
Profinet Type C cables are made for dynamic applications
Construction
- Conductor: bare copper AWG22/7
- Insulation: Polyolefin compound
Four insulated conductors twisted to a quad. - Inner jacket - Bedding TPE-O
- Screen: ALU/PET foil
Alu outside - Tinned copper braid
- Jacket: See products
Environment
Designed to reduce the environmental impact, Nexans cables are compliant with RoHS 2011/65 Directive and European Reach 1907/2006/EC regulation.
Characteristics
Characteristics
结构特性
结构特性
结构类型
1x(4xAWG22/7)
导体材料
裸铜线
绝缘
聚烯烃
绝缘色
White, Orange, Blue, Yellow
内护套
TPE-O
Taping
Polyester / Alu tape (Alu outside)
屏蔽
80% tinned copper braid coverage
Separator
Non woven tape
外护套
Polyurethane compound
护套颜色
Green RAL 6018
尺寸特性
尺寸特性
标称外径
6.6 mm
铜含量
28 kg/km
近似重量
72 kg/km
电气特性
电气特性
Rated Voltage Uo/U
300 V
测试电压
2500 V
特性阻抗
100 Ohm
传输特性
传输特性
最大衰减，1Mhz
3.2 dB/1000m
Attenuation at 4 MHz
6.5 dB/100m
最大衰减，10Mhz
9.9 dB/100m
最大衰减，16Mhz
12.3 dB/100m
最大衰减，20Mhz
13.8 dB/100m
最大衰减，100Mhz
33.00 dB/100m
机械特性
机械特性
弯曲循环
3 Mio.
速度
200 m/min
Maximum acceleration
4 m/s²
使用特性
使用特性
应用类型
动态
最小弯曲半径 - 动态
10 (xD)
操作温度范围
-30 ... 80 °C
存储温度范围
-40 ... 80 °C
阻燃 - 火焰
IEC 60332-1
耐油
EN 60811-2-1
