MEASURING SYSTEMS PUR CABLES ACC. TO FANUC STD.
MEASURING SYSTEMS PUR CABLES ACC. TO FANUC STD.

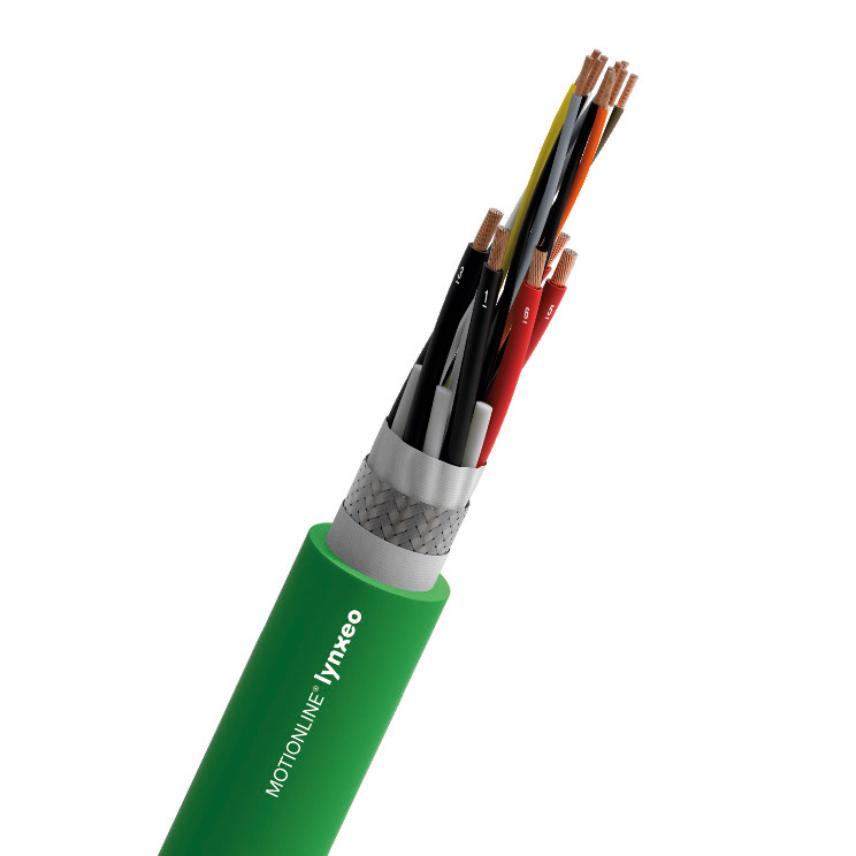

Measuring systems cables according to FANUC standard for dynamic applications, PUR jacket, shielded, resistant to oils, flame retardant, halogen free
更多内容13-MYF - 3X2X0.18 + 6X1.0
Product ref. 10554367 - Country ref. 13-MYF17Z12P-V1
- 包装: Cut to length (米)
- 结构类型: (3x2x0.18+6x1)C
- 标称外径: 8.7 mm
- 铜含量: 88 kg/km
- 近似重量: 129 kg/km
13-MYF - 1x2x0.18 + 5x0.5
Product ref. 10554368 - Country ref. 13-MYF21Z07P-V1
- 包装: Cut to length (米)
- 结构类型: (1x2x0.18+5x0.5)C
- 标称外径: 7.6 mm
- 铜含量: 45 kg/km
- 近似重量: 83 kg/km
13-MYF - 5x0.50 + 2x2x0.18
Product ref. 10554370 - Country ref. 13-MYF21Z09P-V1
- 包装: Cut to length (米)
- 结构类型: (2x2x0.18+5x0.5)C
- 标称外径: 7.7 mm
- 铜含量: 47 kg/km
- 近似重量: 83 kg/km
13-MYF - 4X2X0.22 + 2X0.5
Product ref. 10554372 - Country ref. 13-MYF21Z10P-V1
- 包装: Cut to length (米)
- 结构类型: (4x2x0.22+2x0.5)C
- 标称外径: 7.6 mm
- 铜含量: 72 kg/km
- 近似重量: 85 kg/km
13-MYF - 3X2X0.18 + 6X0.5
Product ref. 10554373 - Country ref. 13-MYF21Z12P-V1
- 包装: Cut to length (米)
- 结构类型: (3x2x0.18+6x0.5)C
- 标称外径: 8.7 mm
- 铜含量: 64 kg/km
- 近似重量: 100 kg/km
13-MYF - 5X2X0.18 + 6X0.5
Product ref. 10554376 - Country ref. 13-MYF21Z16P-V1
- 包装: Cut to length (米)
- 结构类型: (5x2x0.18+6x0.5)C
- 标称外径: 8.7 mm
- 铜含量: 71 kg/km
- 近似重量: 110 kg/km
Description
Description
Standards
-
ProductUL and CSA approval
Design
Insulation colour code:
1x2x0.18 mmq:
Brown + White
5x0.5 mmq:
Blue + Pink + Green + Yellow + Grey
2x2x0.18 mmq :
(Brown + White) + (Violet + Black)
5x0.5 mmq:
Blue + Pink + Green + Yellow + Grey
4x2x0.22 mmq:
(Brown + Black) + (Brown/Red)
(Yellow + Black) + (Yellow/Red)
(Green/Black) + (Green/Red)
(Grey/Black) + (Grey/Red)
2x0.5 mmq:
Brown + Yellow
3x2x0.18 mmq:
(Red + White) + (Red + Black)
(Black + White)
6x0.5 mmq:
3 x Red num. 4-6 + 3 x Black num. 1-3
5x2x0.18 mmq:
(Black + Orange) + (Black + Grey)
(White + Yellow) + (White + Grey) + (White + Brown)
6x0.5 mmq:
3 x Red num. 4-6 + 3 x Black num. 1-3
