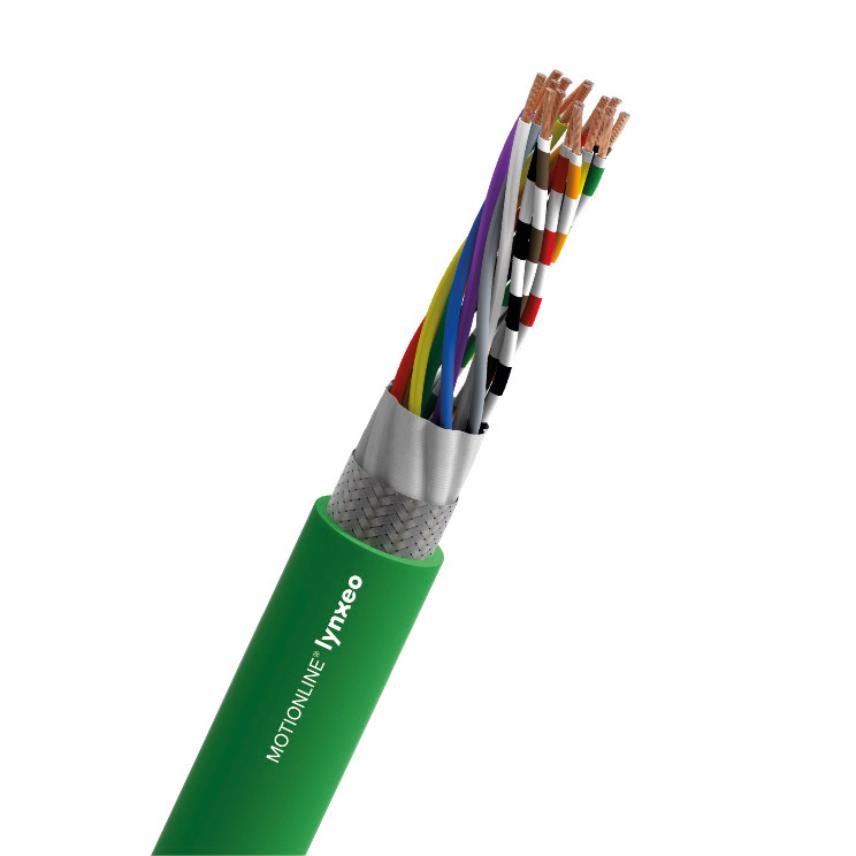

MEASURING SYSTEMS CABLES ACC. TO SIEMENS® STANDARD 6FX8008
MEASURING SYSTEMS CABLES ACC. TO SIEMENS® STANDARD 6FX8008
Measuring systems cables for very dynamic applications. MOTIONLINE® ADVANCED
更多内容MEASURING SYSTEMS ACC. TO SIEMENS® 6FX8008 (2x2x0,18)C
Product ref. 49483271 - Country ref. 6FX8008-1BD71
- 包装: Drum (1000米)
- 结构类型: (2x2x0.18)C
- 铜含量: 22 kg/km
- 近似重量: 37 kg/km
- 外径: 5.2 mm
MEASURING SYSTEMS ACC. TO SIEMENS® 6FX8008 (4x2x0,18)C
Product ref. 49483171 - Country ref. 6FX8008-1BD61
- 包装: Drum (1000米)
- 结构类型: (4x2x0.18)C
- 铜含量: 34 kg/km
- 近似重量: 55 kg/km
- 外径: 6.7 mm
MEASURING SYSTEMS ACC. TO SIEMENS® 6FX8008 (12x0,22)C
Product ref. 49483071 - Country ref. 6FX8008-1BD81
- 包装: Drum (1000米)
- 结构类型: (12x0.22)C
- 铜含量: 48 kg/km
- 近似重量: 78 kg/km
- 外径: 7.1 mm
MEASURING SYSTEMS ACC. TO SIEMENS® 6FX8008 (8P0,18)C
Product ref. 49483371 - Country ref. 6FX8008-1BD11
- 包装: Drum (1000米)
- 结构类型: (8P0,18)C
- 铜含量: 54 kg/km
- 近似重量: 89 kg/km
- 外径: 8.3 mm
MEASURING SYSTEMS ACC. TO SIEMENS® 6FX8008 (4X2X0,34+4x0,5)C
Product ref. 49482671 - Country ref. 6FX8008-1BD21
- 包装: Drum (1000米)
- 结构类型: (4x2x0,34+4x0,5)C
- 铜含量: 70 kg/km
- 近似重量: 107 kg/km
- 外径: 8.6 mm
MEASURING SYSTEMS ACC. TO SIEMENS® 6FX8008 (3x(2x0,14)C+(2x0,5)C)C
Product ref. 49482771 - Country ref. 6FX8008-1BD31
- 包装: Drum (1000米)
- 结构类型: (3x(2x0.14)D+(2x0.5)D)C
- 铜含量: 63 kg/km
- 近似重量: 107 kg/km
- 外径: 8.9 mm
MEASURING SYSTEMS ACC. TO SIEMENS® 6FX8008 (3x(2x0,14)C+2x0,5+4x0,14)C
Product ref. 49482971 - Country ref. 6FX8008-1BD41
- 包装: Drum (1000米)
- 结构类型: (3x(2x0,14)C+2x0,5+4x0,14)C
- 铜含量: 61 kg/km
- 近似重量: 101 kg/km
- 外径: 9.1 mm
MEASURING SYSTEMS ACC. TO SIEMENS® 6FX8008 (3x(2x0,14)C+2x0,5+4x0,14+4x0,22)C
Product ref. 49482871 - Country ref. 6FX8008-1BD51
- 包装: Drum (1000米)
- 结构类型: (3x(2x0,14)C+2x0,5+4x0,14+4x0,22)C
- 铜含量: 82 kg/km
- 近似重量: 122 kg/km
- 外径: 9.9 mm
Description
Description
Standards
-
ProductUL and CSA approval
For very dynamic applications; PUR Jacket, screened, resistant to oils and coolants, notch resistant, flame retardant, resistant to hydrolysis and microbes, PVC- and halogen-free.
Characteristics
Characteristics
结构特性
结构特性
导体材料
Bending-resistant conductor with tinned copper wires
绝缘
TPM with very low capacitance
绝缘色
See Tab
屏蔽
Tinned copper braid, coverage ≥ 85%
外护套
PUR
护套颜色
Green RAL 6018
无卤
是
电气特性
电气特性
Rated Voltage Uo/U
30 V
测试电压
300 V
机械特性
机械特性
弯曲循环
5 Mio.
速度
180 m/min
Maximum acceleration
20 m/s²
使用特性
使用特性
应用类型
动态
最小弯曲半径 - 动态
10 (xD)
操作温度范围
-15 ... 80 °C
存储温度范围
-40 ... 80 °C
阻燃 - 火焰
IEC 60332-1-2; UL 1581 FT1
耐油
DIN EN 50363-10-2 & DIN EN 60811-404
