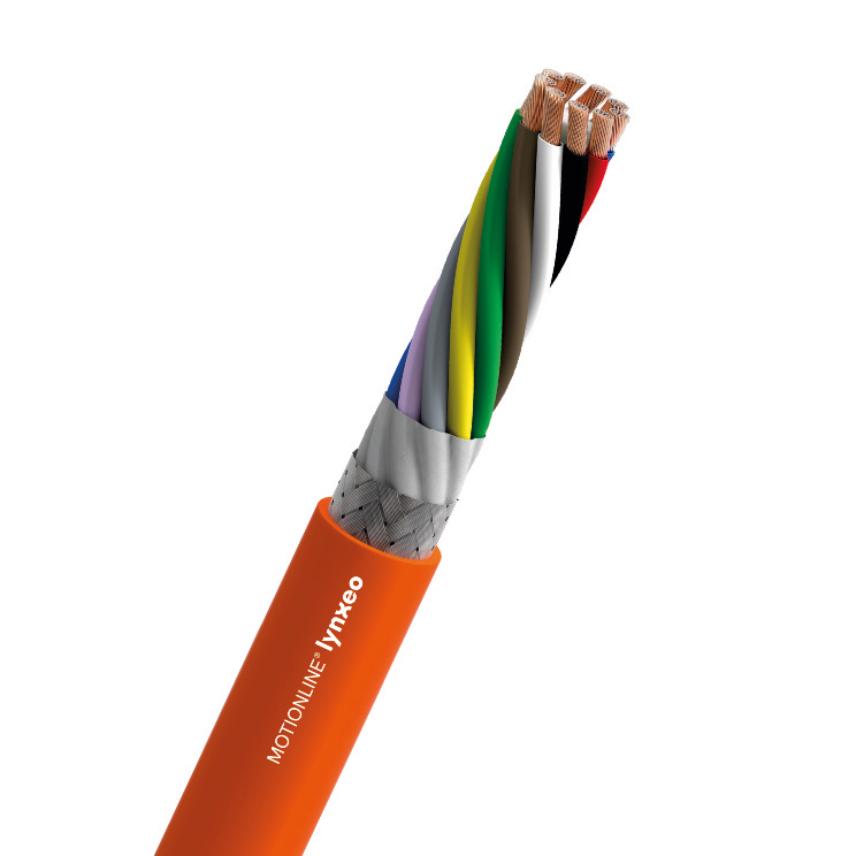

MEASURING SYSTEM CABLES ACC. TO BOSCH REXROTH® STANDARD
MEASURING SYSTEM CABLES ACC. TO BOSCH REXROTH® STANDARD
Measuring systems cables for very dynamic applications. MOTIONLINE® ADVANCED
更多内容MEASURING SYSTEM CABLES BOSCH REXROTH® IN 750
Nexans ref. 49387760 - Country ref. IN 750
- 包装: Drum (1000m)
- 结构类型: (2x2x0,25+2x0,5)C
- 外径: 7.8 mm
- 铜含量: 40 kg/km
- 近似重量: 82 kg/km
MEASURING SYSTEM CABLES BOSCH REXROTH® IN 209
Nexans ref. 49387060 - Country ref. IN 209
- 包装: Drum (1000m)
- 结构类型: (4x2x0.25+2x1)C
- 外径: 8.1 mm
- 铜含量: 59 kg/km
- 近似重量: 90 kg/km
MEASURING SYSTEM CABLES BOSCH REXROTH® IN 448
Nexans ref. 49389060 - Country ref. IN 448
- 包装: Drum (1000m)
- 结构类型: (4x2x0.25+2x0.5)C
- 外径: 8.2 mm
- 铜含量: 50 kg/km
- 近似重量: 85 kg/km
MEASURING SYSTEM CABLES BOSCH REXROTH® IN 208
Nexans ref. 49386960 - Country ref. IN 208
- 包装: Drum (1000m)
- 结构类型: (9x0.5)C
- 外径: 8.9 mm
- 铜含量: 68 kg/km
- 近似重量: 111 kg/km
MEASURING SYSTEM CABLES BOSCH REXROTH® IN 532
Nexans ref. 49389260 - Country ref. IN 532
- 包装: Drum (1000m)
- 结构类型: (4x2x0,14+4x1,0+(4x0,14)C)C
- 外径: 9.1 mm
- 铜含量: 88 kg/km
- 近似重量: 131 kg/km
MEASURING SYSTEM CABLES BOSCH REXROTH® IN 280
Nexans ref. 49389960 - Country ref. IN 280
- 包装: Drum (1000m)
- 结构类型: (3x0,25+3x(2x0,25)+2x1,0)C
- 外径: 9.3 mm
- 铜含量: 87 kg/km
- 近似重量: 127 kg/km
Description
Description
Standards
-
ProductUL and CSA approval
For very dynamic applications; PUR Jacket, screened, resistant to oils and coolants, notch resistant, flame retardant, resistant to hydrolysis and microbes, PVC- and halogen-free.
Characteristics
Characteristics
结构特性
结构特性
导体材料
Bending-resistant conductor with tinned copper wires
绝缘
TPM with very low capacitance
绝缘色
See Tab
屏蔽
Tinned copper braid, coverage ≥ 80%
外护套
PUR
护套颜色
Orange RAL 2003
无卤
是
电气特性
电气特性
Rated Voltage Uo/U
30 V
测试电压
300 V
机械特性
机械特性
弯曲循环
10 Mio.
速度
180 m/min
Maximum acceleration
20 m/s²
使用特性
使用特性
应用类型
动态
最小弯曲半径 - 动态
10 (xD)
操作温度范围
-15 ... 80 °C
存储温度范围
-40 ... 80 °C
阻燃 - 火焰
IEC 60332-1-2; UL 1581 FT1
耐油
DIN EN 50363-10-2 & DIN EN 60811-404
