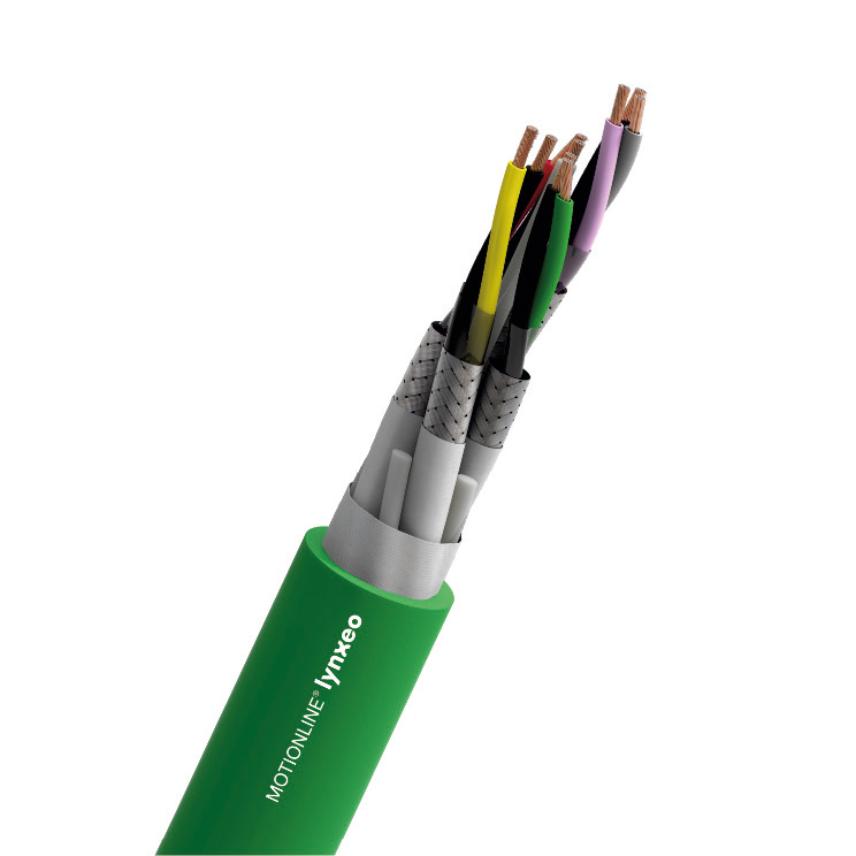

MEASURING SYSTEM CABLES ACC. TO LENZE® STANDARD
MEASURING SYSTEM CABLES ACC. TO LENZE® STANDARD
Measuring systems cables for very dynamic applications. MOTIONLINE® ADVANCED
更多内容MEASURING SYSTEM CABLES LENZE® STANDARD (3x(2x0,14)+3x0,14)C
Product ref. 49383670
- 包装: Drum (1000米)
- 结构类型: (3x(2x0,14)+3x0,14)C
- 铜含量: 36 kg/km
- 近似重量: 70 kg/km
- 外径: 8.3 mm
MEASURING SYSTEM CABLES LENZE® STANDARD (3x(2x0,14)C+(4x0,14)+(2+0,5))C
Product ref. 49383570
- 包装: Drum (1000米)
- 结构类型: (3x(2x0,14)C+(4x0,14)+(2+0,5))C
- 铜含量: 50 kg/km
- 近似重量: 89 kg/km
- 外径: 8.9 mm
MEASURING SYSTEM CABLES LENZE® STANDARD (4x(2x0,14)C+2x(1)C)C
Product ref. 49393070
- 包装: Drum (1000米)
- 结构类型: (4x(2x0,14)C+2x(1)C)C
- 铜含量: 86 kg/km
- 近似重量: 126 kg/km
- 外径: 9 mm
MEASURING SYSTEM CABLES LENZE® STANDARD (3x(2x0,14)C+(2x0,5)C)C
Product ref. 49480870
- 结构类型: (3x(2x0.14)D+(2x0.5)D)C
- 铜含量: 64 kg/km
- 近似重量: 107 kg/km
- 外径: 9.3 mm
MEASURING SYSTEM CABLES LENZE® STANDARD 4x(2x0,14)C+(2x1)C
Product ref. 49383470
- 包装: Drum (1000米)
- 结构类型: 4x(2x0,14)C+(2x1)C
- 铜含量: 63 kg/km
- 近似重量: 117 kg/km
- 外径: 10.7 mm
Description
Description
Standards
-
ProductUL and CSA approval
For very dynamic applications; PUR Jacket, screened, resistant to oils and coolants, notch resistant, flame retardant, resistant to hydrolysis and microbes, PVC- and halogen-free.
Characteristics
Characteristics
结构特性
结构特性
导体材料
Bending-resistant conductor with tinned copper wires
绝缘
TPM with very low capacitance
绝缘色
See Tab
屏蔽
Tinned copper braid, coverage ≥ 85%
外护套
PUR
护套颜色
Green RAL 6018
无卤
是
电气特性
电气特性
Rated Voltage Uo/U
30 V
测试电压
300 V
机械特性
机械特性
弯曲循环
5 Mio.
速度
180 m/min
Maximum acceleration
20 m/s²
使用特性
使用特性
应用类型
动态
最小弯曲半径 - 动态
10 (xD)
操作温度范围
-15 ... 80 °C
存储温度范围
-40 ... 80 °C
阻燃 - 火焰
IEC 60332-1-2; UL 1581 FT1
耐油
DIN EN 50363-10-2 & DIN EN 60811-404
