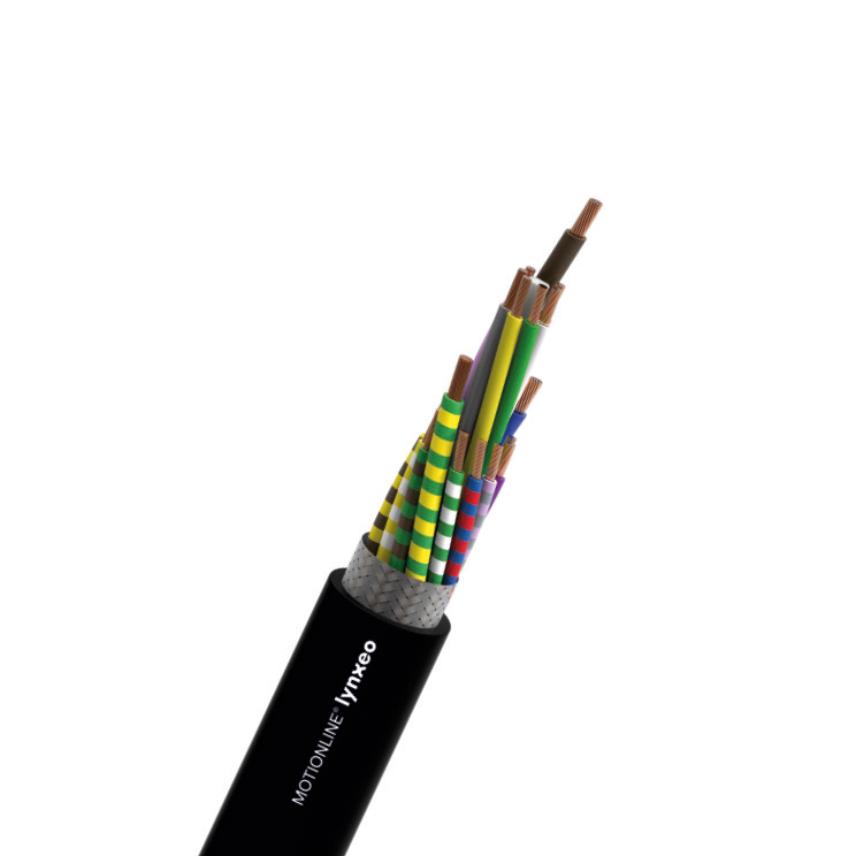

MULTICORE SENSOR CABLES FOR DRAG CHAIN APPLICATION ADVANCED
MULTICORE SENSOR CABLES FOR DRAG CHAIN APPLICATION ADVANCED
Home run cables for very dynamic applications MOTIONLINE® ADVANCED
更多内容HOME RUN CABLES FOR DRAG CHAIN APPLICATION ADVANCED 8x0,34+3x1,0
Product ref.
- 包装: Drum (1000米)
- 结构类型: -
- 外径: - mm
- 铜含量: - kg/km
- 近似重量: - kg/km
HOME RUN CABLES FOR DRAG CHAIN APPLICATION ADVANCED 8x0,34+3x1,0
Product ref.
- 包装: Drum (1000米)
- 结构类型: 8x0,34+3x1,0
- 外径: 9.2 mm
- 铜含量: 60 kg/km
- 近似重量: 110 kg/km
HOME RUN CABLES FOR DRAG CHAIN APPLICATION ADVANCED 12x0,34+3x1,0
Product ref. 44487611
- 包装: Drum (1000米)
- 结构类型: 12x0,34+3x1,0
- 外径: 10.2 mm
- 铜含量: 72 kg/km
- 近似重量: 120 kg/km
HOME RUN CABLES FOR DRAG CHAIN APPLICATION ADVANCED 16x0,34+3x1,0
Product ref. 44487211
- 包装: Drum (1000米)
- 结构类型: 16x0,34+3x1,0
- 外径: 11.2 mm
- 铜含量: 88 kg/km
- 近似重量: 140 kg/km
HOME RUN CABLES FOR DRAG CHAIN APPLICATION ADVANCED 16x0,5+3x1,0
Product ref. 44494811
- 包装: Drum (1000米)
- 结构类型: 16x0,5+3x1,0
- 外径: 11.3 mm
- 铜含量: 107 kg/km
- 近似重量: 164 kg/km
Description
Description
Standards
-
ProductUL and CSA approval
Home run cables for very dynamic applications; PUR Jacket; resistant to oils and coolants, notch resistant, flame retardant, resistant to hydrolysis and microbes, PVC- and halogen-free.
Characteristics
Characteristics
结构特性
结构特性
导体材料
Bending-resistant conductor with bare copper wires
绝缘
TPM with very low capacitance
绞合
cores stranded with filler
绝缘色
See Tab
外护套
PUR
护套颜色
Black - RAL 9005
无卤
是
电气特性
电气特性
Rated Voltage Uo/U
300 V
测试电压
2000 V
机械特性
机械特性
弯曲循环
5 Mio.
速度
180 m/min
Maximum acceleration
20 m/s²
使用特性
使用特性
应用类型
动态
最小弯曲半径 - 动态
10 (xD)
操作温度范围
-15 ... 80 °C
存储温度范围
-40 ... 80 °C
阻燃 - 火焰
IEC 60332-1-2; UL 1581 FT1
耐油
DIN EN 50363-10-2 & DIN EN 60811-404
