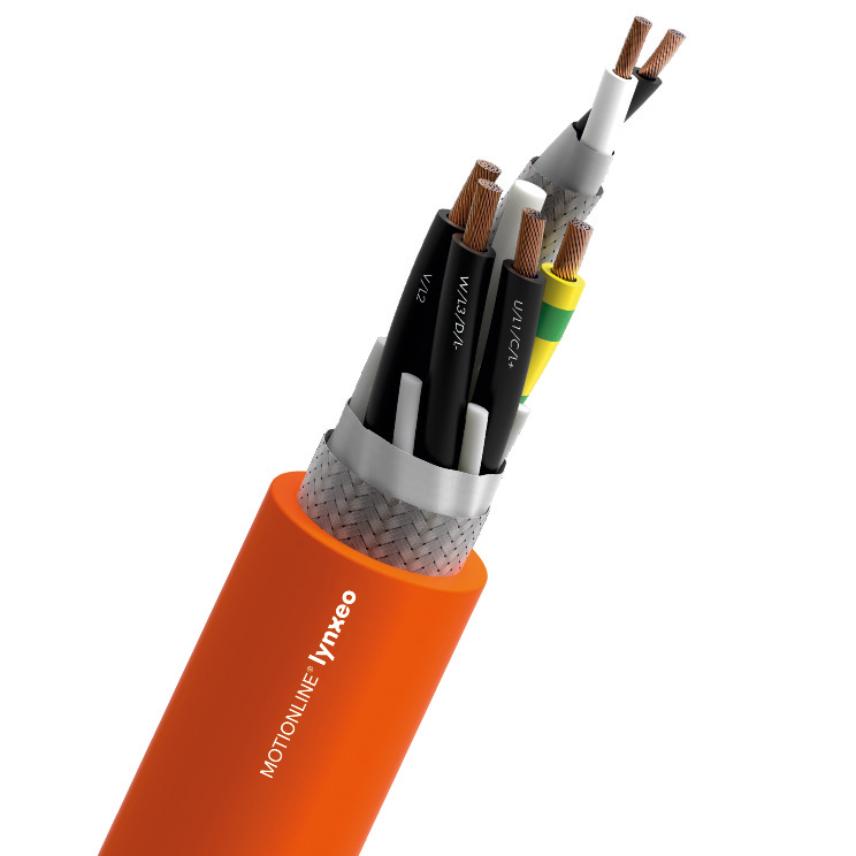

SERVO CABLES ACC. TO DANAHER STANDARD PW+SG
SERVO CABLES ACC. TO DANAHER STANDARD PW+SG
Servo cables with control pair according to DANAHER standard fpr dynamic applications, PUR jacket, shielded, resistant to oils, flame retardant, halogen free
更多内容13-EBA (4G10+1x(2x1)C)C
Nexans ref. 13-EBA07Z06P-A3 - Country ref. 13-EBA07Z06P-A3
- 包装: Drum (1000m)
- 结构类型: (4G10 + (2x1.0)C)C
- 标称外径: 19.2 mm
- 铜含量: 501 kg/km
- 近似重量: 677 kg/km
13-EBA (4G6 + 1x(2x1)C)C
Nexans ref. 13-EBA09Z06P-A3 - Country ref. 13-EBA09Z06P-A3
- 包装: Drum (1000m)
- 结构类型: (4G6 + (2x1.0)C)C
- 标称外径: 16.3 mm
- 铜含量: 331 kg/km
- 近似重量: 450 kg/km
13-EBA (4G4 +1x(2x1)C)C
Nexans ref. 13-EBA11Z06P-A3 - Country ref. 13-EBA11Z06P-A3
- 包装: Drum (1000m)
- 结构类型: (4G4 + (2x1.0)C)C
- 标称外径: 14.3 mm
- 铜含量: 236 kg/km
- 近似重量: 338 kg/km
13-EBA (4G2.5+1x(2x1)C)C
Nexans ref. 10552877 - Country ref. 13-EBA13Z06P-A3
- 包装: Cut to length (m)
- 结构类型: (4G2.5 + (2x1.0)C)C
- 标称外径: 13.2 mm
- 铜含量: 174 kg/km
- 近似重量: 262 kg/km
13-EBA (4G1.5+1x(2x1)C)C
Nexans ref. 10552881 - Country ref. 13-EBA15Z06P-A3
- 包装: Cut to length (m)
- 结构类型: (4G1.5 + (2x1.0)C)C
- 标称外径: 11.8 mm
- 铜含量: 126 kg/km
- 近似重量: 205 kg/km
13-EBA (4G1.0+1x(2x1)C)C
Nexans ref. 13-EBA17Z06P-A3 - Country ref. 13-EBA17Z06P-A3
- 包装: Drum (1000m)
- 结构类型: (4G1 + (2x1.0)C)C
- 标称外径: 10.8 mm
- 铜含量: 120 kg/km
- 近似重量: 166 kg/km
Description
Description
Standards
-
ProductUL and CSA approval
Power
Rated voltage:
1000 V
Conductors:
Bare copper
Insulation material:
Polyolefin
Core identification:
Power: Black num. 1+3 + Green/Yellow
Shield:
Tinned copper braid covering > 85%
Binder tape:
Textile no textile
Jacket:
PUR
Colour:
ORANGE RAL 2003 (-A3)
Signal pair
Rated voltage:
600 V
Conductors:
Bare copper
Insulation:
Polyolefin
Core identification:
Black - White
Shield:
Tinned copper wrap covering > 85%
Binder tape :
Textile no textile
Characteristics
Characteristics
结构特性
结构特性
电气特性
电气特性
机械特性
机械特性
使用特性
使用特性
