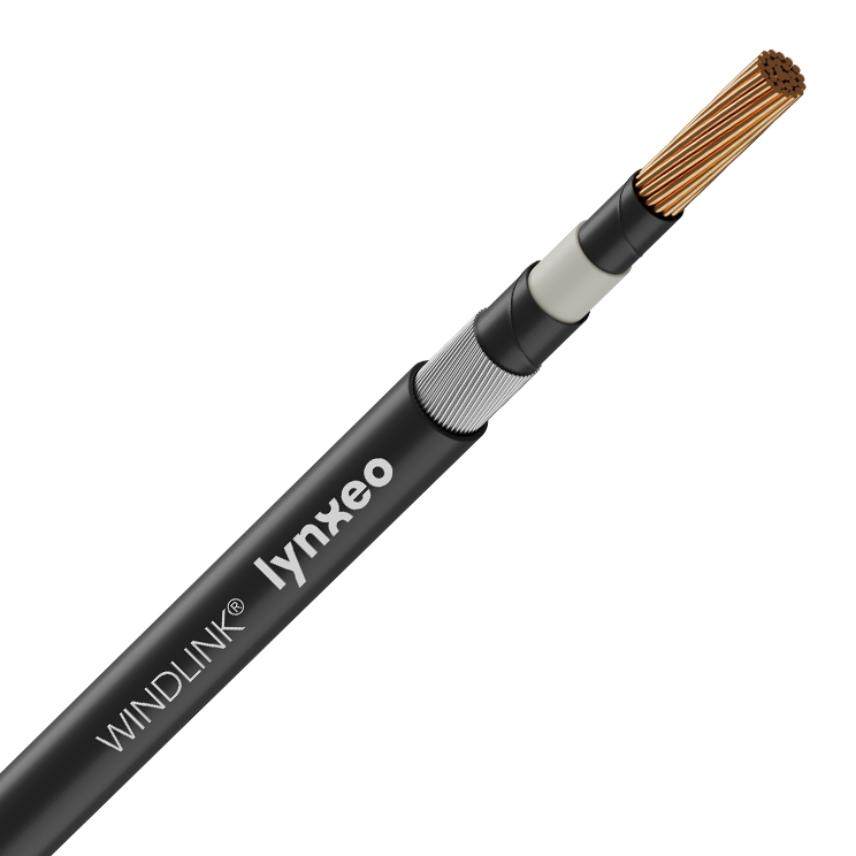

WINDLINK® MV-RS (N)TSCGEHXOE 66kV (72kV)
(N)TSCGEHXOE 3x120+3x120/3 36/60(72)kV
Product ref.
- 绝缘厚度: 12.0 mm
- Nominal outer sheath thickness: 3.0 mm
- 最小线缆直径: 102.5 mm
- 最大线缆直径: 105.5 mm
- 近似重量: 14050 kg/km
- 内导体电阻（DC）: 0.205 Ohm/km
- Operating capacitances: .16 mF/km
- 露天允许通过的额定电流: 339 A
(N)TSCGEHXOE 3x150+3x150/3 36/60(72)kV
Product ref.
- 绝缘厚度: 11.5 mm
- Nominal outer sheath thickness: 3.0 mm
- 最小线缆直径: 97 mm
- 最大线缆直径: 104 mm
- 近似重量: 14300 kg/km
- 内导体电阻（DC）: 0.165 Ohm/km
- Operating capacitances: .16 mF/km
- 露天允许通过的额定电流: 399 A
(N)TSCGEHXOE 3x240+3x240/3 36/60(72)kV
Product ref.
- 绝缘厚度: 10.0 mm
- Nominal outer sheath thickness: 4.0 mm
- 最小线缆直径: 107 mm
- 最大线缆直径: 114 mm
- 近似重量: 18700 kg/km
- 内导体电阻（DC）: 0.102 Ohm/km
- Operating capacitances: .198 mF/km
- 露天允许通过的额定电流: 538 A
(N)TSCGEHXOE 3x95+3x95/3 36/60(72)kV
Product ref.
- 绝缘厚度: 12.0 mm
- Nominal outer sheath thickness: 3.0 mm
- 最小线缆直径: 94 mm
- 最大线缆直径: 96.5 mm
- 近似重量: 11860 kg/km
- 内导体电阻（DC）: 0.263 Ohm/km
- Operating capacitances: .136 mF/km
- 露天允许通过的额定电流: 298 A
Description
Description
Standards
-
ProductDIN VDE 0207 part 20; DIN VDE 0250 part 1; DIN VDE 0250 part 813; IEC 60228
Application
Medium-voltage trailing cable WINDLINK® MV-RS (N)TMCGCHXOE in one-sheath design was developed for special application conditions in wind turbines. The construction is torsion resistant by suspension lengths of 100 m. These cables are specified for medium mechanical stress and for operation under permanent influence of seawater and outdoor use.
Resistance to:
- permanent movement
- permanent vibrations
- compressive stress
- oil
- flame-retardant
- temporary influence of seawater
- weather
- ozone influence
- suitable for torsion up to +/- 80 °/meter, test 2000 cycles
Characteristics
Characteristics
结构特性
结构特性
结构类型
3x95+3x95/3
导体材料
Bare copper class 5
内半导体材料
-
绝缘
-
外半导体材料
-
绝缘色
-
内护套
-
外护套
-
无卤
IEC 60754
尺寸特性
尺寸特性
导体直径(mm)
-
内护套厚度
- mm
电气特性
电气特性
Max. Electrical Resistance AC 60Hz 70°C
- Ohm/km
Max. Electrical Resistance AC 60Hz 90°C
- Ohm/km
感抗
- Ohm/km
允许通过的短路电流
- kA
Operating voltage - range
- kV
机械特性
机械特性
最大抗拉强度
- N/mm2
Torsion stress
- °/m
防刮擦
-
使用特性
使用特性
气体腐蚀性
-
阻燃 - 火焰
IEC 60332-1-2
耐油
-
Ozone resistance
-
最小弯曲半径 - 安装
- (xD)
最小弯曲半径 - 静态（XD）
-
烟密度
-
耐气候性
-
Resources
Resources
Selling & delivery Information
Marking
Inkjet-marking (WS), e.g.:
WINDLINK® MV-RS (N)TMCGCXOE 1x185/25 20/35 kV I NEXANS I week/year
