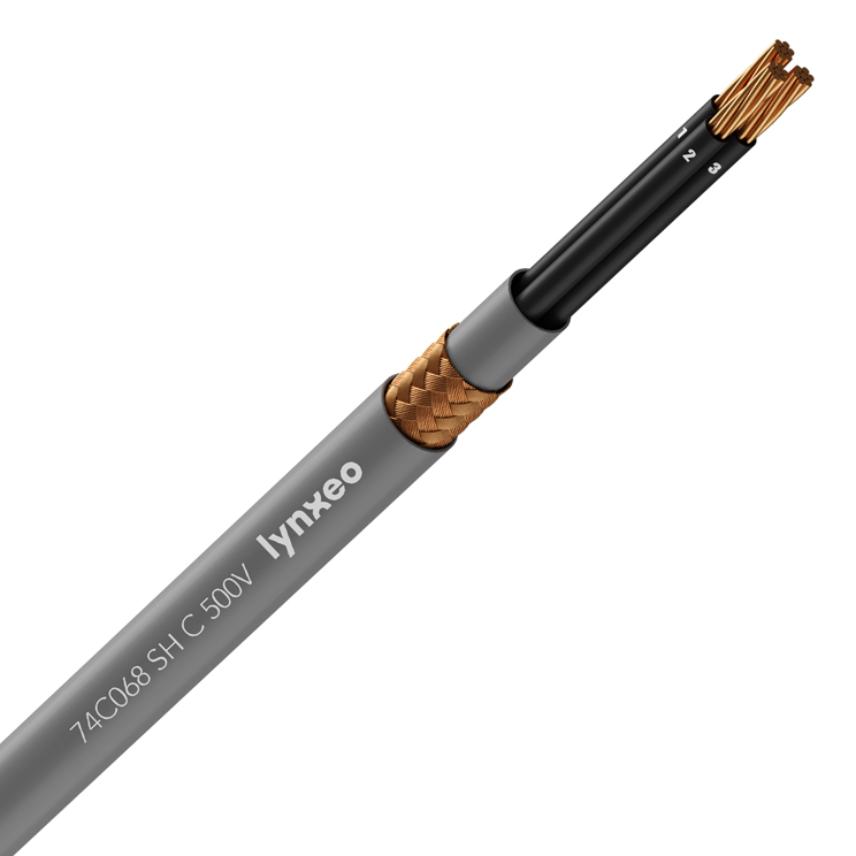

74C068 SH C 500V ... Cu2/5 K2 EG NA
74C068 SH C 500V ... Cu2/5 K2 EG NA
- CST 74C068
- Quality insurance according to RCC-E
- Zero halogen (SH)
- Control cables 0.3/0.5 (0.6) kV
- Cables installed inside of the containment area (K2)
- Overall screened (EG)
- Unarmoured (NA)
74C068 SH C 500V 2x0.5 Cu2 K2 EG NA
Product ref. 10213050
- 包装: Cut to length (米)
- 导线截面: 0.5 mm²
- 芯线数: 2
- 20°C时导体的最大直流电阻: 36 Ohm/km
- 90°C时导体的最大直流电阻: 45.900 Ohm/km
- Reactance at 50 Hz: 0.112 Ohm/km
- Short Circuit Current 0,3 s Max : 0.13 kA
- Short Circuit Current 1 s Max : 0.07 kA
- Impedance at 50 Hz : 36 Ohm
- Voltage Drop: 73.6 V/A.km
- Calorific Power: 1.7 MJ/m
74C068 SH C 500V 27x0,5 Cu2 K2 EG NA
Product ref. 10219518
- 包装: Cut to length (米)
- 导线截面: 0.5 mm²
- 芯线数: 27
- 20°C时导体的最大直流电阻: 36 Ohm/km
- 90°C时导体的最大直流电阻: 45.900 Ohm/km
- Reactance at 50 Hz: 0.112 Ohm/km
- Short Circuit Current 0,3 s Max : 0.13 kA
- Short Circuit Current 1 s Max : 0.07 kA
- Impedance at 50 Hz : 36 Ohm
- Voltage Drop: 73.6 V/A.km
- Calorific Power: 4.7 MJ/m
74C068 SH C 500V 37x0,5 Cu2 K2 EG NA
Product ref. 10213052
- 包装: Cut to length (米)
- 导线截面: 0.5 mm²
- 芯线数: 37
- 20°C时导体的最大直流电阻: 36 Ohm/km
- 90°C时导体的最大直流电阻: 45.900 Ohm/km
- Reactance at 50 Hz: 0.112 Ohm/km
- Short Circuit Current 0,3 s Max : 0.13 kA
- Short Circuit Current 1 s Max : 0.07 kA
- Impedance at 50 Hz : 36 Ohm
- Voltage Drop: 73.6 V/A.km
- Calorific Power: 5.8 MJ/m
74C068 SH C 500V 48x0,5 Cu2 K2 EG NA
Product ref. 10213053
- 包装: Cut to length (米)
- 导线截面: 0.5 mm²
- 芯线数: 48
- 20°C时导体的最大直流电阻: 36 Ohm/km
- 90°C时导体的最大直流电阻: 45.900 Ohm/km
- Reactance at 50 Hz: 0.112 Ohm/km
- Short Circuit Current 0,3 s Max : 0.13 kA
- Short Circuit Current 1 s Max : 0.07 kA
- Impedance at 50 Hz : 36 Ohm
- Voltage Drop: 73.6 V/A.km
- Calorific Power: 6.9 MJ/m
74C068 SH C 500V 3x1 Cu2 K2 EG NA
Product ref. 10254509
- 包装: Cut to length (米)
- 导线截面: 1 mm²
- 芯线数: 3
- 20°C时导体的最大直流电阻: 18.1 Ohm/km
- 90°C时导体的最大直流电阻: 23.000 Ohm/km
- Reactance at 50 Hz: 0.1 Ohm/km
- Short Circuit Current 0,3 s Max : 0.26 kA
- Short Circuit Current 1 s Max : 0.14 kA
- Impedance at 50 Hz : 18.1 Ohm
- Voltage Drop: 36.9 V/A.km
- Calorific Power: 1.8 MJ/m
74C068 SH C 500V 7x1 Cu2 K2 EG NA
Product ref. 10266098
- 包装: Cut to length (米)
- 导线截面: 1 mm²
- 芯线数: 7
- 20°C时导体的最大直流电阻: 18.1 Ohm/km
- 90°C时导体的最大直流电阻: 23.000 Ohm/km
- Reactance at 50 Hz: 0.1 Ohm/km
- Short Circuit Current 0,3 s Max : 0.26 kA
- Short Circuit Current 1 s Max : 0.14 kA
- Impedance at 50 Hz : 18.1 Ohm
- Voltage Drop: 36.9 V/A.km
- Calorific Power: 2.2 MJ/m
74C068 SH C 500V 9x1 Cu2 K2 EG NA
Product ref. 10260490
- 包装: Cut to length (米)
- 导线截面: 1 mm²
- 芯线数: 9
- 20°C时导体的最大直流电阻: 18.1 Ohm/km
- 90°C时导体的最大直流电阻: 23.000 Ohm/km
- Reactance at 50 Hz: 0.1 Ohm/km
- Short Circuit Current 0,3 s Max : 0.26 kA
- Short Circuit Current 1 s Max : 0.14 kA
- Impedance at 50 Hz : 18.1 Ohm
- Voltage Drop: 36.9 V/A.km
- Calorific Power: 3.2 MJ/m
74C068 SH C 500V 12x1 Cu2 K2 EG NA
Product ref. 10260491
- 包装: Cut to length (米)
- 导线截面: 1 mm²
- 芯线数: 12
- 20°C时导体的最大直流电阻: 18.1 Ohm/km
- 90°C时导体的最大直流电阻: 23.000 Ohm/km
- Reactance at 50 Hz: 0.1 Ohm/km
- Short Circuit Current 0,3 s Max : 0.26 kA
- Short Circuit Current 1 s Max : 0.14 kA
- Impedance at 50 Hz : 18.1 Ohm
- Voltage Drop: 36.9 V/A.km
- Calorific Power: 3.4 MJ/m
74C068 SH C 500V 14x1 Cu2 K2 EG NA
Product ref. 10254510
- 包装: Cut to length (米)
- 导线截面: 1 mm²
- 芯线数: 14
- 20°C时导体的最大直流电阻: 18.1 Ohm/km
- 90°C时导体的最大直流电阻: 23.000 Ohm/km
- Reactance at 50 Hz: 0.1 Ohm/km
- Short Circuit Current 0,3 s Max : 0.26 kA
- Short Circuit Current 1 s Max : 0.14 kA
- Impedance at 50 Hz : 18.1 Ohm
- Voltage Drop: 36.9 V/A.km
- Calorific Power: 3.7 MJ/m
74C068 SH C 500V 27x1 Cu2 K2 EG NA
Product ref. 10260492
- 包装: Cut to length (米)
- 导线截面: 1 mm²
- 芯线数: 27
- 20°C时导体的最大直流电阻: 18.1 Ohm/km
- 90°C时导体的最大直流电阻: 23.000 Ohm/km
- Reactance at 50 Hz: 0.1 Ohm/km
- Short Circuit Current 0,3 s Max : 0.26 kA
- Short Circuit Current 1 s Max : 0.14 kA
- Impedance at 50 Hz : 18.1 Ohm
- Voltage Drop: 36.9 V/A.km
- Calorific Power: 5.7 MJ/m
74C068 SH C 500V 3x1,5 Cu2 K2 EG NA
Product ref. 10213106
- 包装: Cut to length (米)
- 导线截面: 1.5 mm²
- 芯线数: 3
- 20°C时导体的最大直流电阻: 12.1 Ohm/km
- 90°C时导体的最大直流电阻: 15.400 Ohm/km
- Reactance at 50 Hz: 0.094 Ohm/km
- Short Circuit Current 0,3 s Max : 0.39 kA
- Short Circuit Current 1 s Max : 0.21 kA
- Impedance at 50 Hz : 12.1 Ohm
- Voltage Drop: 24.8 V/A.km
- Calorific Power: 2 MJ/m
74C068 SH C 500V 4x1,5 Cu2 K2 EG NA
Product ref. 10213104
- 包装: Cut to length (米)
- 导线截面: 1.5 mm²
- 芯线数: 4
- 20°C时导体的最大直流电阻: 12.1 Ohm/km
- 90°C时导体的最大直流电阻: 15.400 Ohm/km
- Reactance at 50 Hz: 0.094 Ohm/km
- Short Circuit Current 0,3 s Max : 0.39 kA
- Short Circuit Current 1 s Max : 0.21 kA
- Impedance at 50 Hz : 12.1 Ohm
- Voltage Drop: 24.8 V/A.km
- Calorific Power: 2.1 MJ/m
74C068 SH C 500V 20x1,5 Cu2 K2 EG NA
Product ref. 10213107
- 包装: Cut to length (米)
- 导线截面: 1.5 mm²
- 芯线数: 20
- 20°C时导体的最大直流电阻: 12.1 Ohm/km
- 90°C时导体的最大直流电阻: 15.400 Ohm/km
- Reactance at 50 Hz: 0.094 Ohm/km
- Short Circuit Current 0,3 s Max : 0.39 kA
- Short Circuit Current 1 s Max : 0.21 kA
- Impedance at 50 Hz : 12.1 Ohm
- Voltage Drop: 24.8 V/A.km
- Calorific Power: 5.5 MJ/m
Description
Description
Standards
-
ProductIEC 60228
-
TestIEC 60332-3-23; IEC 60754-1; IEC 61034-2; NF C32-070/C1
Applications
These control cables allow connection to a variety of industrial equipement from control room. Many of them require anti-inductive screen (EMI).
Construction
Conductor:
- Stranded (class 2) or flexible (class 5) plain copper
Insulation:
- Zero halogen (SH), cross-linked
Assembling:
- Polyester tape (optional)
Inner sheath:
- Low smoke, zero halogen (LSZH)
- Colour: grey
Screen:
- Copper wire braid (CWB) R ≥ 80 %
Outer sheath:
- Low smoke, zero halogen (LSZH)
- Colour: grey
Core identification
Black cores printed with white numbers
Optional: with G/Y core.
Characteristics
Characteristics
结构特性
结构特性
使用特性
使用特性
Resources
Resources
Documentation
Selling & delivery Information
Minimum bending radius:
10 x outer diameter
To be doubled during laying operations
Marking
NEXANS 279 Nber of cores & cross-section Cu EG CST 74 C 068 K2 SH 0.3/0.5 (0.6) kV YYYY Manufacturing number + metric marking
