Description
Description
Standards
-
国际NSA 935344 XE

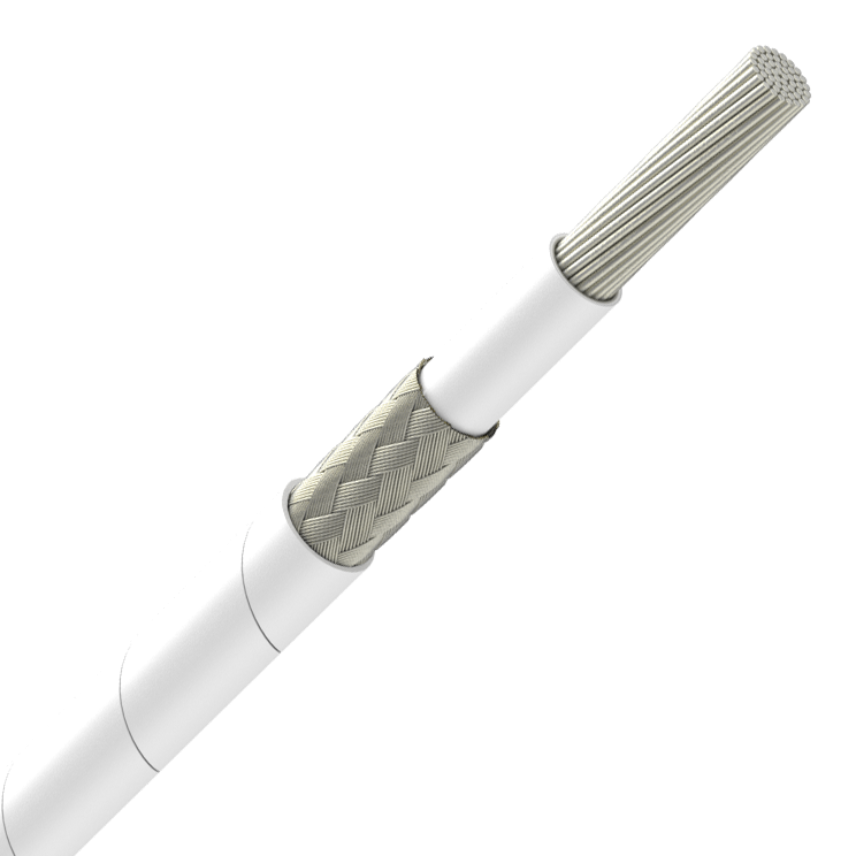

CORE
7 x 0.17 mm Strand
Silver plated copper covered steel
Diameter = 0.51 mm
INSULATION
Extruded PTFE
Diameter = 1.52 ± 0.07 mm
SHIELD
Single braid of silver plated copper
Strand diameter = 0.10 mm
JACKET
White PTFE tapes
Diameter = 2.70 ± 0.10 mm
Nom. weight = 18 g/m
Electical Characteristics
| Maximum oeprating frequency | : 1.8 GHz |
| Voltage rating | : 900V rms |
| Nominal capacitance | : 95 pF/m |
| Impedance at 200 MHz | : 50 ± 2 Ω |
| Nominal attenuation at 900MHz | : 0.8 dB/100m |
Characteristics
Characteristics
使用特性
使用特性
最高工作温度
250 °C
阻燃 - 火焰
FAR/JAR part 25 sec 25.869 (a)(4) Appendix F part 1 (3)
耐油
Very good resistance to aircraft fluids
符合RoHS
是
Resources
Resources
Selling & delivery Information
Marking text : " XE FR F ** "
FR = Country of Origin (FR = France)
F = Manufacturer (F = Nexans)
** = Year of manufacturing (ie. 14 = 2014)
