SP 799
SP 799
180 °C Operating Temperature
Nickel Plated Aluminium
Power Feeder Cables
Aero engine services.
Description
Description
Standards
-
NationalESW 1000-010

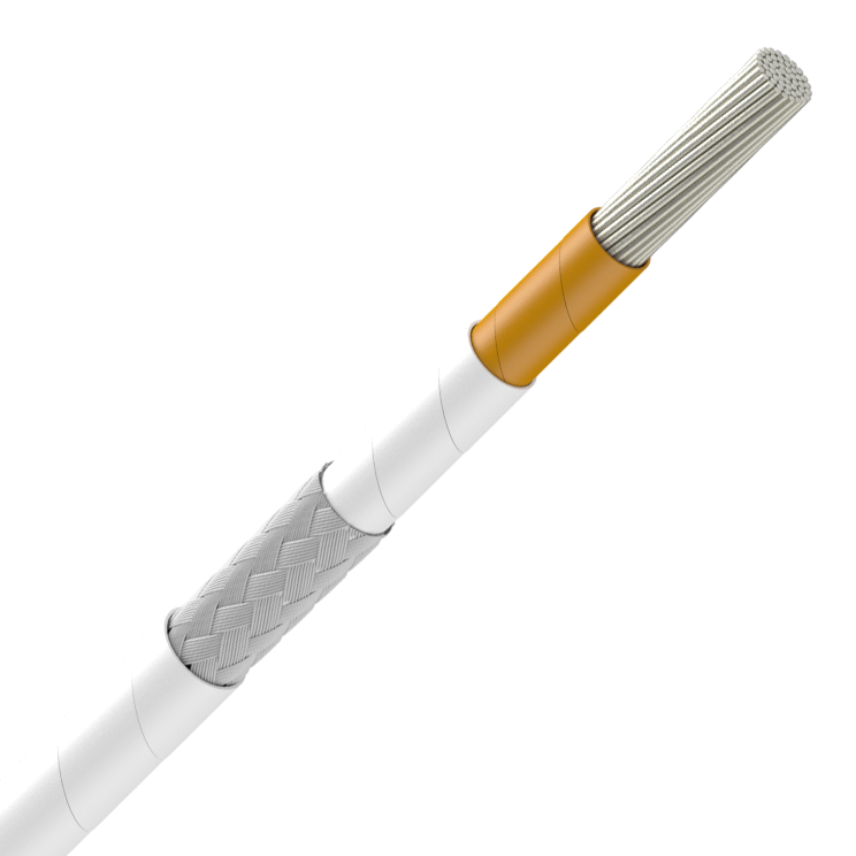

Cable Design
CONDUCTOR
A Stranded Conductor
Made of Nickel Plated Aluminium
INSULATION
Polyimide Tape
PTFE Tapes
PTFE Coated Fiberglass Tape
PTFE Tapes
IDENTIFICATION
Colour of cable : white
colour of marking : Green
Marking text : " ET xxxxxx FRF++ "
xxxxxx=Study number
++ = Year of manufacturing
Characteristics
Characteristics
尺寸特性
尺寸特性
最大线缆直径
- mm
电气特性
电气特性
工作电压
600 V
使用特性
使用特性
操作温度范围
-65 ... 180 °C
耐油
Very good resistance to aircraft fluids
Resources
Resources
Documentation
Selling & delivery Information
Colour of cable : white
colour of marking : Green
Marking text : " ET xxxxxx FRF++ "
(xxxxxx)= Study number
++ = Year of manufacturing
