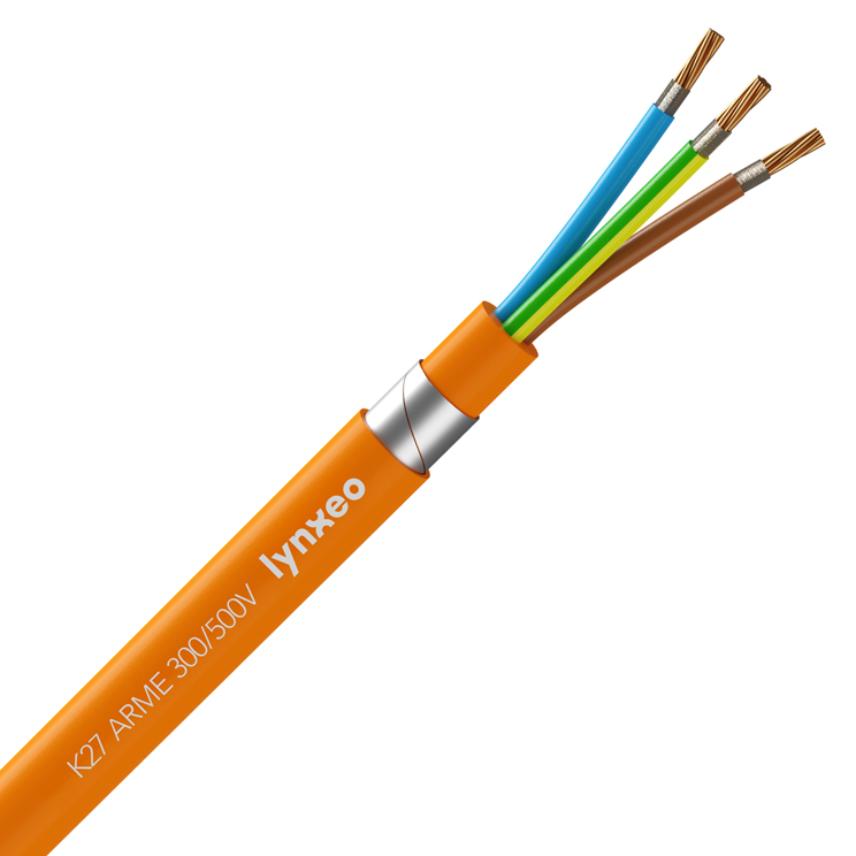

K27 ARMOURED 300/500V
K27 ARME 300/500V 3G1,5
Product ref. 10224667
- 有绿/黄芯线: 是
- 芯线数: 3
- 导线截面: 1.5 mm²
- Maximum outer diameter: 15.3 mm
- 近似重量: 329 kg/km
K27 ARME 300/500V 2x1,5
Product ref. 10224665
- 有绿/黄芯线: 无
- 芯线数: 2
- 导线截面: 1.5 mm²
- Maximum outer diameter: 14.5 mm
- 近似重量: 284 kg/km
K27 ARME 300/500V 12x1,5
Product ref. 10265295
- 有绿/黄芯线: 无
- 芯线数: 12
- 导线截面: 1.5 mm²
- Maximum outer diameter: 29.0 mm
- 近似重量: 716 kg/km
K27 ARME 300/500V 3G2,5
Product ref. 10224668
- 有绿/黄芯线: 是
- 芯线数: 3
- 导线截面: 2.5 mm²
- Maximum outer diameter: 16.5 mm
- 近似重量: 396 kg/km
K27 ARME 300/500V 2x2,5
Product ref. 10224666
- 有绿/黄芯线: 无
- 芯线数: 2
- 导线截面: 2.5 mm²
- Maximum outer diameter: 16.7 mm
- 近似重量: 313 kg/km
K27 ARME 300/500V 3G4
Product ref. 10265294
- 有绿/黄芯线: 是
- 芯线数: 3
- 导线截面: 4 mm²
- Maximum outer diameter: 17.6 mm
- 近似重量: 494 kg/km
K27 ARME 300/500V 2x4
Product ref. 10265271
- 有绿/黄芯线: 无
- 芯线数: 2
- 导线截面: 4 mm²
- Maximum outer diameter: 18.1 mm
- 近似重量: 440 kg/km
K27 ARME 300/500V 2x6
Product ref. 10242834
- 有绿/黄芯线: 无
- 芯线数: 2
- 导线截面: 6 mm²
- Maximum outer diameter: 18.8 mm
- 近似重量: 539 kg/km
K27 ARME 300/500V 2x10
Product ref. 10265272
- 有绿/黄芯线: 无
- 芯线数: 2
- 导线截面: 10 mm²
- Maximum outer diameter: 21.8 mm
- 近似重量: 723 kg/km
K27 ARME 300/500V 5G16
Product ref. 10269286
- 有绿/黄芯线: 是
- 芯线数: 5
- 导线截面: 16 mm²
- Maximum outer diameter: 29.0 mm
- 近似重量: 1700 kg/km
K27 ARME 300/500V 4x16
Product ref. 10230163
- 有绿/黄芯线: 无
- 芯线数: 4
- 导线截面: 16 mm²
- Maximum outer diameter: 25.9 mm
- 近似重量: 1348 kg/km
K27 ARME 300/500V 2x16
Product ref. 10265273
- 有绿/黄芯线: 无
- 芯线数: 2
- 导线截面: 16 mm²
- Maximum outer diameter: 23.9 mm
- 近似重量: 923 kg/km
Description
Description
Standards
-
ProductIEC 60228; NF C32-310
-
TestNF C32-070/C1; NF C32-070/C2
Fire performance
- Flame retardant: According to RATP K20 specification
- Fire retardant : According to RATP K20 specification
- Fire resistant : According to RATP K20 specification
- Low smoke: According to RATP K20 specification
- Without Halogene: According to RATP K20 specification
- Low Toxicity: According to RATP K20 specification
- Low Corrosivity: According to RATP K20 specification

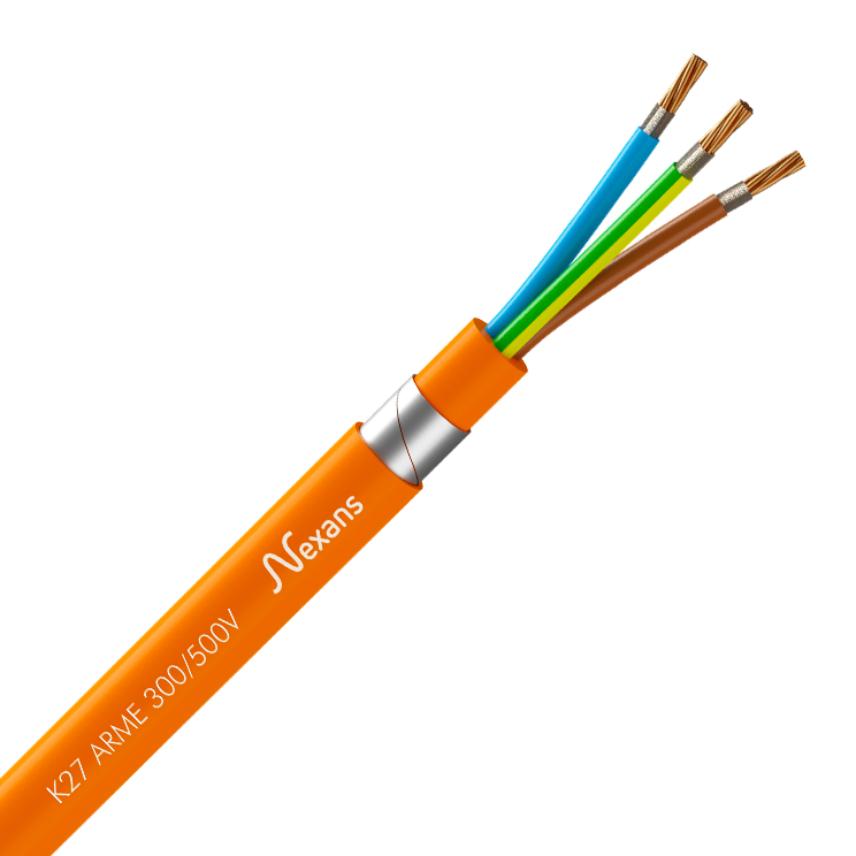

Design
- Conductor : Bare copper - Solid class 1 for cross section <4mm² - Stranded class 2 for cross section >=4mm²
- Insulation : Silicone rubber + mica tape
- Inner sheath : Halogen free Polyolefin
- Armour : Steel tapes
- Outer sheath : Halogen free Polyolefin, Colour : orange
Core identification
2x: blue-brown
3x: brown-black-grey or
brown-black-blue for cross sections 1,5 and 2,5)
3G: green/yellow-blue-brown
4x: blue-brown-black-grey
4G: green/yellow-brown-black-grey
5x: blue-brown-black-grey-black
5G: green/yellow-blue-brown-black-grey
7x: white numbered with or without green/yellow
Characteristics
Characteristics
结构特性
结构特性
导体材料
裸铜
绝缘
云母带
绝缘材料
Silicone
内护套
聚烯烃
外护套
无卤聚烯烃
护套颜色
橙
无卤
IEC 60754-1
机械特性
机械特性
机械耐冲击性能
好
使用特性
使用特性
操作温度范围
-20 ... 60 °C
气体腐蚀性
低 IEC 60754-2
烟密度
IEC 61034-2
阻燃
NFC 32070 C1
阻燃 - 火焰
NFC 32070 C2
耐火
IEC 60332-3-23 Cat.B
芯线最高静止温度
90 °C
Resources
Resources
Selling & delivery Information
Marking
K27 - 300/500 - Nber of cores & cross-section - ARME - MM/YY - NEXANS 279 - Manufacturing n° + metric marking
