K27 ARMOURED 100/170V
K27 ARMOURED 100/170V 1P0.9
Product ref. 10141944
- 包装: m (1000米)
- 导线截面: 0.9 mm²
- 线对数: 1
- Maximum outer diameter: 12.3 mm
- 近似重量: 197 kg/km
K27 ARMOURED 100/170V 2P0.9
Product ref. 10060691
- 包装: m (1000米)
- 导线截面: 0.9 mm²
- 线对数: 2
- Maximum outer diameter: 12.7 mm
- 近似重量: 232 kg/km
K27 ARMOURED 100/170V 15P0.9
Product ref. 10176876
- 包装: m (1000米)
- 导线截面: 0.9 mm²
- 线对数: 15
- Maximum outer diameter: 37.2 mm
- 近似重量: 1238 kg/km
K27 ARMOURED 100/170V 2P1,2
Product ref. 10280194
- 包装: m (1000米)
- 导线截面: 1.2 mm²
- 线对数: 2
- Maximum outer diameter: 17.7 mm
- 近似重量: 383 kg/km
K27 ARMOURED 100/170V 5P1,2
Product ref. 10174887
- 包装: m (1000米)
- 导线截面: 1.2 mm²
- 线对数: 5
- Maximum outer diameter: 25.7 mm
- 近似重量: 828 kg/km
K27 ARMOURED 100/170V 15P1,2
Product ref. 10163149
- 包装: m (1000米)
- 导线截面: 1.2 mm²
- 线对数: 15
- Maximum outer diameter: 39.1 mm
- 近似重量: 1679 kg/km
Description
Description
Standards
-
ProductIEC 60228; NF C32-310
-
TestNF C32-070/C1; NF C32-070/C2
Fire performance
- Flame retardant: According to RATP K20 specification
- Fire retardant : According to RATP K20 specification
- Fire resistant : According to RATP K20 specification
- Low smoke: According to RATP K20 specification
- Without Halogene: According to RATP K20 specification
- Low Toxicity: According to RATP K20 specification
- Low Corrosivity: According to RATP K20 specification

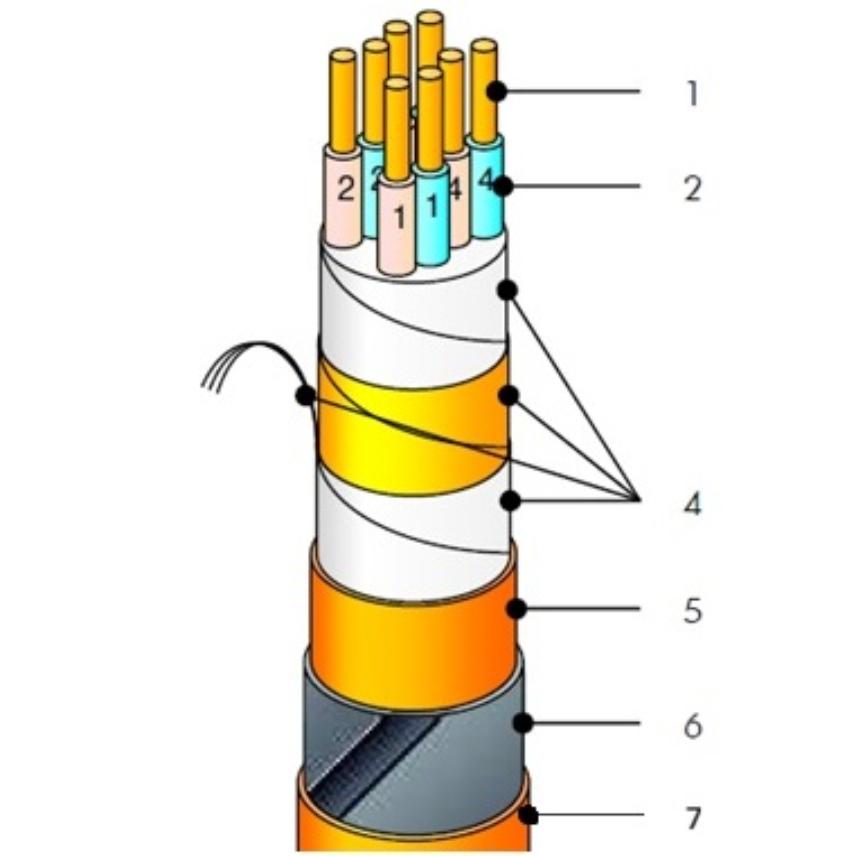

Design
- Conductor : Bare copper - Solid class 1
- Insulation : Silicone rubber
- Collective screen : Polyester tape/copper tape/tinned copper drain wire
- Inner sheath : Halogen free Polyolefin
- Armour : Steel tapes
- Outer sheath : Halogen free Polyolefin, Colour : orange
Core identification
Pair: white-blue
Each core printed with pair number
Characteristics
Characteristics
结构特性
结构特性
导体材料
裸铜
导体类型
Solid, Class 1
绝缘材料
Silicone
内护套
Halogen free polyolefin
铠装类型
钢带
外护套
无卤聚烯烃
护套颜色
橙
无卤
IEC 60754-1
机械特性
机械特性
机械耐冲击性能
好
使用特性
使用特性
操作温度范围
-20 ... 70 °C
气体腐蚀性
低 IEC 60754-2
烟密度
IEC 61034-2
阻燃
NFC 32070 C1
阻燃 - 火焰
NFC 32070 C2
耐火
NF C 32-070 CR1
抗电磁干扰
是
芯线最高静止温度
90 °C
Resources
Resources
Selling & delivery Information
Marking
K27 - 100/170 - Nber of paires & cross-section - ARME - MM/YY - NEXANS 279 - Manufacturing n° + metric marking
