FLAMEX® ETHERNET-FR
FLAMEX® ETHERNET-FR
FLAMEX
FIRE RESISTANT ETHERNET CABLES
Fostering innovation, Lynxeo designed FLAMEX® Ethernet FR that can reach data transmission performances for Category 5E or 6A as described in the ISO/CEI 11801, showing no loss of data train and no drop of the transmission parameters when burnt. This unique fire performance is achievable thanks to our technology for fire resistant cables known as INFITTM. On top of the fire performances, this technology makes easier and faster the preparation and the connection of the wires with rolling stock connectors compared to older taping technologies. FLAMEX® FR Ethernet cables are fire retardant, low smoke and halogen-free satisfying performance requirements from EN 45545-2.

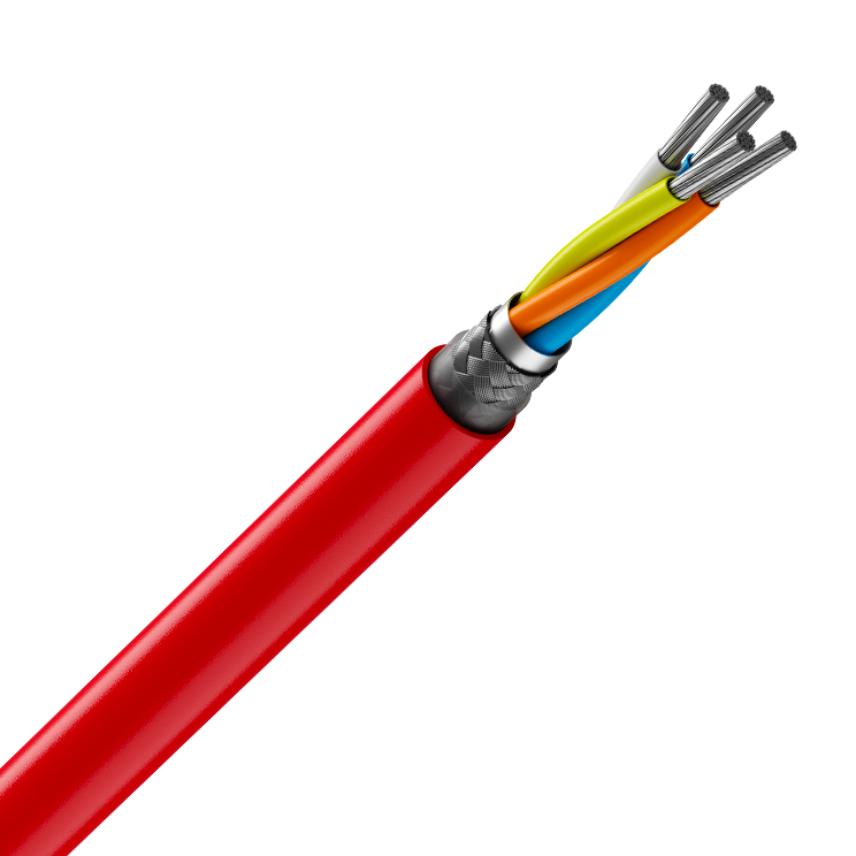

2PM694
Product ref. 10273549 - Country ref. 2PM694
- 包装: Drum (1000米)
- 电缆类型: CAT 5E
- 结构类型: 4x0,34 - AWG22
- 最小线缆直径: 7.8 mm
- 最大线缆直径: 8.4 mm
- 近似重量: 90 kg/km
- 阻燃 - 火焰: EN 45545-2 (HL3)
- 烟密度: EN 45545-2 (HL3)
2PM021
Product ref. 10263802 - Country ref. 2PM021
- 包装: Drum (1000米)
- 电缆类型: CAT 5E
- 结构类型: 4x0,5
- 最小线缆直径: 8.1 mm
- 最大线缆直径: 8.5 mm
- 近似重量: 96 kg/km
- 阻燃 - 火焰: EN 60332-1-2
- 烟密度: EN/IEC 61034-2

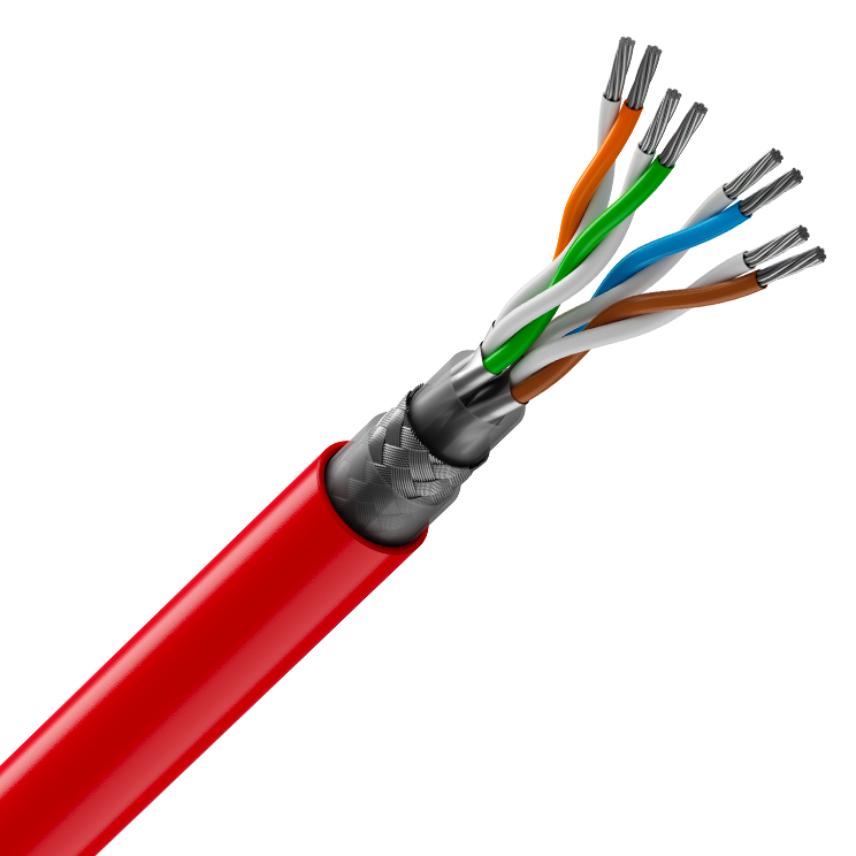

2PM653
Product ref. 10272381 - Country ref. 2PM653
- 包装: Drum (1000米)
- 电缆类型: CAT 6A
- 结构类型: 4x2x0,25
- 最小线缆直径: 12 mm
- 最大线缆直径: 14 mm
- 近似重量: 170 kg/km
- 阻燃 - 火焰: EN 45545-2 (HL3)
- 烟密度: EN 45545-2 (HL3)
Description
Description
Standards
-
ProductEN 50464-1; EN 45545-2 (HL3)
-
TestEN 50200
DESIGN
1. Conductor
Stranded tinned copper (metric or AWG sizes)
2. Insulation
Special halogen-free INFITTM fire proof material
Quad or Pairs assemblies
3. Screen
Tinned copper braid
Separator tape
4. Outer sheath
Cross-linked material EM 104 or EM 101 acc. EN 50264-1
Oil, diesel, ozone and UV resistant
Colour: red
Example of marking: FLAMEX 239 - EDE 2PM653 - [4(2x0.25mm² 10Gigabit CAT 6A)] M S - EN 50200 - week and year of manufacture - batch number
ADDITIONAL INFORMATION
- Fire resistant acc. to:
- EN 50200 PH 30-60 tested under 110 V
- EN 50200 PH 90 Ethernet frame loss and transmission parameter
- Bending radius:
- Static use: 8 x outer cable diameter
- For installation and occasional movements: 10 x outer cable diameter
