STUDY 124585
STUDY 124585
Very High Temperature Fire Resistant Wires
Aero engines and very high temperature applications
Beschreibung
Beschreibung
Normen
-
ProduktBMS 13-55
-
NationalST 448 006 3 01 A

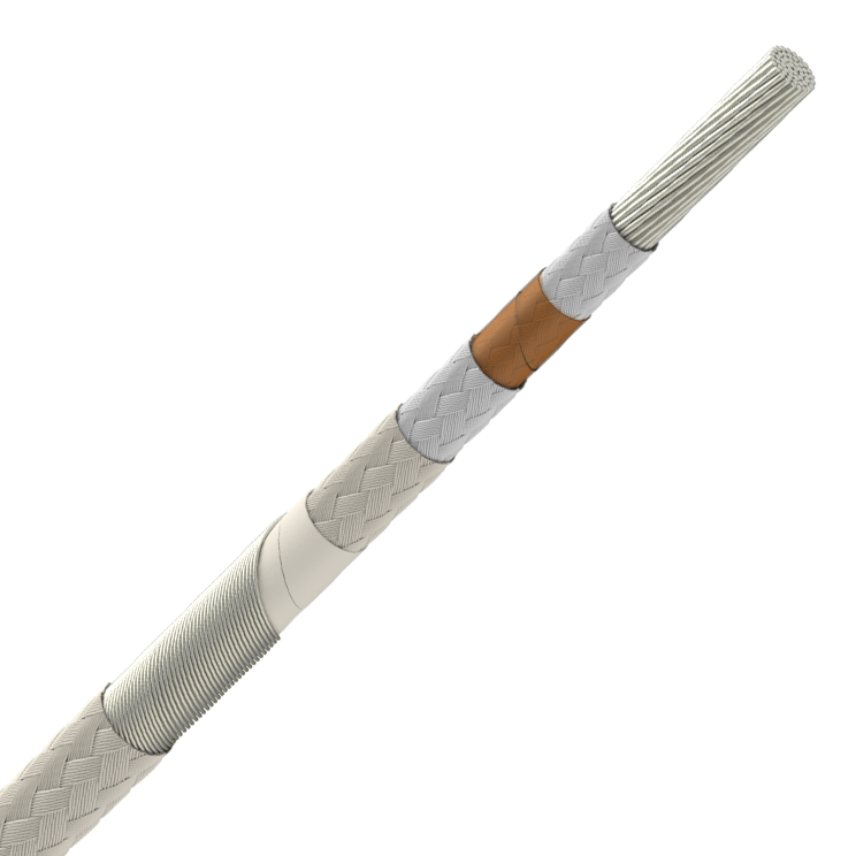

CORE (Study 124521)
19 strands of nickel clad copper conductor
Strands diameter = 0.287 mm
Special fire resistant composite insulation
Very high temperature
SCREEN
Nickel clad copper helicoidal screen
Strands diameter = 0.13 mm
JACKET
Very high temperature resistant composite
Characteristics
| Voltage raitng | : 600V rms |
| Maximum operating frequency | : 2000 Hz |
| Temperature rating | : 20 000 hours at 300°C |
| Operating life (approx.) | : 30 hours at 370°C |
| : 300 hours at 350°C | |
| : 330 hours at 310°C | |
| : 2500 hours at 300°C | |
| : 32840 hours at 260°C | |
| Therefore a total of 36 000 hours at these time/temperature | |
| Fluids resistance | : According to BMS 13-55 |
| Fire Resistance | : According to BMS 13-55 |
Eigenschaften
Eigenschaften
Anwendungsmerkmale
Anwendungsmerkmale
Betriebstemperatur
-65 ... 300 °C
Feuerbeständig
-
Ölbeständig
Very good resistance to aircraft fluids
